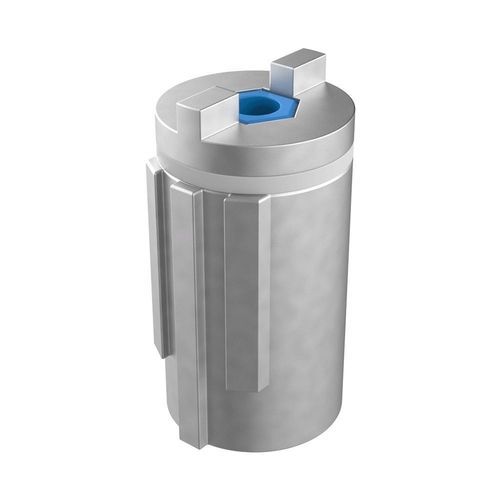

Rotary damper TQG

hydraulicmetalbarrel

Product description
Our dampers, offered in a wide range of torque ratings, are typically used to control the opening stroke of doors or panels. Applications also include timing devices and radial movement control where a predictable deceleration is required. The barrel damper form factor ensures compact integration in assemblies and consistent performance in repeated cycles.

Certifications / Compliance
Drawing PDF: available via site tools
UL94: -
IP: -
RoHS: compliant
Measures expressed in: Millimeters
Video: available

Product references (table)
Reference | D | L | T | H
50004000011 | 17,00 | 30,50 | 2,60 | 2,55
50004000012 | 17,00 | 30,50 | 2,60/4,20 | 4,60

Images / Media
Render image, technical drawing image and animated render available on product page. Product video available on product page.

Technical specifications

• Model: TQG
• Manufacturer / Brand: ISC Plastic Parts
• RoHS: Yes
• UL94: Not indicated
• IP rating: Not indicated
• Measurements units: Millimeters
• Available references: 50004000011, 50004000012
• Reference 50004000011 dimensions: D 17,00 mm; L 30,50 mm; T 2,60 mm; H 2,55 mm
• Reference 50004000012 dimensions: D 17,00 mm; L 30,50 mm; T 2,60/4,20 mm; H 4,60 mm
