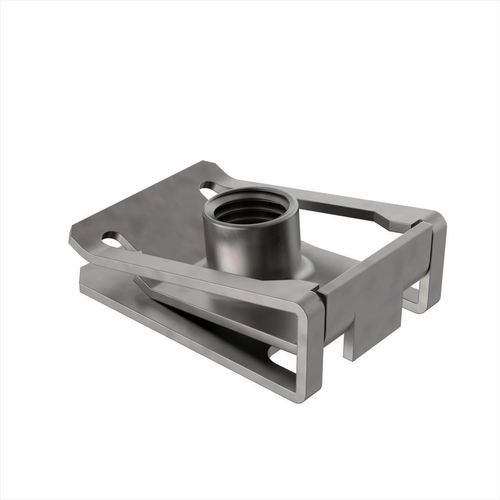

Automobile clip nut NMT

steelfixingclosing

Product description
NMT panel edge nuts act as a threaded clip that slides over the panel edge and engages when the screw is inserted. They streamline panel fastening compared with rivet nuts or welded nuts and allow assembly and disassembly without special tools.

Materials and applications
Manufactured in steel, NMT edge nuts are suitable for a wide range of industrial assemblies including machinery, household appliances and electrical equipment. Available for multiple thread sizes, orientations and panel thicknesses. Measures expressed in: Millimeters. RoHS: compliant. UL94: not rated. IP: not rated.

Features

• Threaded clip design for faster panel fastening
• Fits over panel edge and locks when screw is inserted
• No special tools required; simple disassembly
• Steel construction
• Available in different thread sizes, orientations and panel thicknesses

Reference table
Reference | Suitable for | Hole size | Panel thickness | L | D | B
02800100005 | M5 | 6 | 0.50 to 4.00 | 6.80 | 15.20 | 12.00
02800100006 | M6 | 7 | 0.50 to 4.00 | 11.50 | 24.10 | 16.00
02800100007 | M6 | 8.5 / 8.7 | 0.50 to 4.00 | 10.80 to 11.00 | 24.30 | 15.70
02800100008 | M8 | 9 | 0.80 to 4.00 | 13.00 | 28.00 | 18.00
02800100009 | M10 | 15.5 | 1.50 to 5.50 | 19.00 | 34.50 | 23.85

Technical specifications

• Material: Steel
• Compliance: RoHS
• Measure units: Millimeters
• Available references and dimensions listed in the reference table above
• Applications: machinery, household appliances, electrical equipment and general industrial assemblies
