PCB standoff MSCIA

stackablefor the automotive industry

Product description

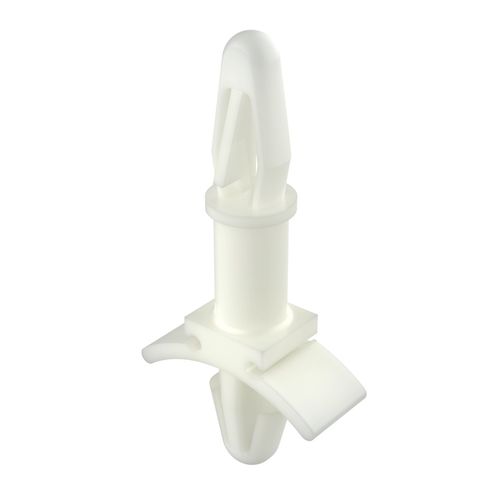

Snap-fit PCB spacer designed to join a bottom chassis to a top printed circuit board without screws. The MSCIA spacer provides a reusable mechanical connection in pre-drilled or punched holes, enabling fast assembly and the possibility of stacking PCBs in multiple tiers.

Options

• Dyed colors available on request

Certifications / Compliance
UL94: V2
RoHS: Yes
IP: Not specified

Measurements
Dimensions and measures expressed in: Millimeters (mm)

Multimedia
Product video available (MP4 on the page).

Variants table (excerpt)
Reference | L | Hole size Anchor 1 | Panel thickness Anchor 1 | Hole size Anchor 2 | Panel thickness Anchor 2 | Type
00100901051 | 2,90 | 4,00 | 1,57 | 4,75 | 0,75 to 1,98 | 1
01301400800 | 3,20 | 3,18 | 1,57 | 3,18 | 0,79 to 1,98 | 1
00100900078 | 4,75 | 3,20 | 1,57 | 3,20 | 1,57 | 1
00100901052 | 4,75 | 4,00 | 1,57 | 4,75 | 0,75 to 1,98 | 1
01301400801 | 4,80 | 3,18 | 1,57 | 3,18 | 0,79 to 1,98 | 1
01301400806 | 4,80 | 4,00 | 1,57 | 4,75 | 0,20 to 1,40 | 1
01301400802 | 4,80 | 4,00 | 1,57 | 4,75 | 0,79 to 1,98 | 1
01301400803 | 4,80 | 4,00 | 1,57 | 4,75 | 0,79 to 1,98 | 2
01301400807 | 4,80 | 4,00 | 1,57 | 4,75 | 1,98 to 3,56 | 1
01301400805 | 4,80 | 4,00 | 2,36 | 4,75 | 0,79 to 1,98 | 1
01301400804 | 4,80 | 4,00 | 2,36 | 4,75 | 1,98 to 3,56 | 1
00100900052 | 5,50 | 4,00 | 1,57 | 4,75 | 0,75 to 1,98 | 2

Technical characteristics / specifications

• Product family / model: MSCIA
• Function: Snap-together PCB spacer to join bottom chassis and top board without screws
• Material / fire rating: UL94 = V2 (as indicated)
• RoHS: Compliant
• IP rating: Not specified
• Units: Dimensions and measures in millimeters
• Available options: Dyed colors on request
• Multimedia: Product video available (MP4 on page)
• Variants: Multiple references with varying L, anchor hole sizes and panel thickness ranges (excerpt shown above)
