PCB standoff MEHM

threadedfemalefor the automotive industry

Product overview

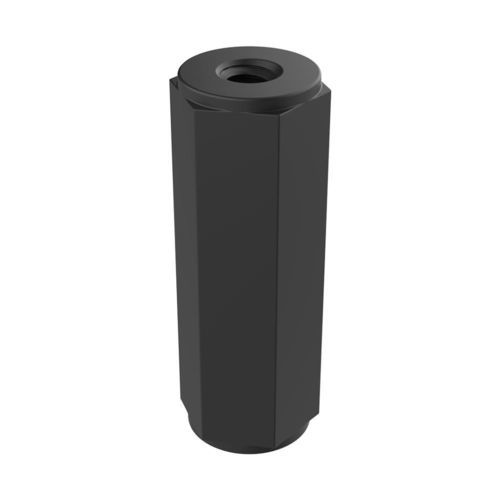

Female-threaded hex spacer model MEHM designed for fastening, spacing and positioning printed circuit boards, panels and components while maintaining a defined distance between assembly elements. The hexagonal body enables tool-assisted installation and secure tightening during assembly.

Materials and classification
Materials: PA66 (polyamide 66) and PA6GF30 (polyamide 6 with 30% glass fibre). Flammability classification: UL94 HB, UL94 V-2 and UL94 V-0 depending on reference. Compliance: RoHS (indicated on product page). IP: not applicable / not indicated.

Applications
Suitable for PCB mounting to ensure clearance between board and chassis, panel or metal structure and to prevent electrical contact. Commonly used in electronic equipment, electrical panels and cabinets, and in applications requiring weight reduction, corrosion resistance or electrical insulation between components.

Availability
Dyed colours possible (availability and minimum quantities depend on reference).

Drawings & digital resources
2D drawings (PDF), UL94 documents and RoHS certificate indicated; product video available. Dimensions expressed in millimetres.

References table (columns: Reference; Thread; L; A; L1; Type; More Info)
Full reference list available on product page. Examples: 01300200500; M2; 5.00; 5.00; ·; 1; (info); 01300200506; M2.5; 8.00; 5.00; ·; 1; (info); 01300200580; M4; 5.00; 8.00; ·; 1; (info); 01300200565; M4; 60.00; 8.00; 10.00; 2; (info).

Characteristics / technical specifications

• Model: MEHM
• Function: female-threaded hexagonal spacer for fastening, spacing and positioning of PCBs, panels and components
• Materials: PA66 and PA6GF30 (30% glass fibre reinforced)
• Flammability: UL94 HB, V-2, V-0 depending on reference
• Compliance: RoHS indicated
• Dimensions & metric threads: multiple references available (M2 up to M6) with lengths from 5 mm up to 60 mm as per references table
• Measures expressed in millimetres
• Available options: dyed colours possible (subject to minimum quantities)
• Digital resources: 2D drawings, UL94 and RoHS documents indicated; product video available
