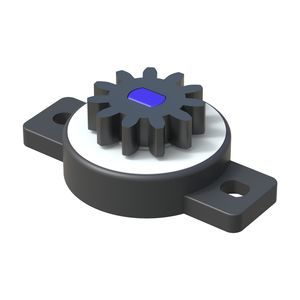

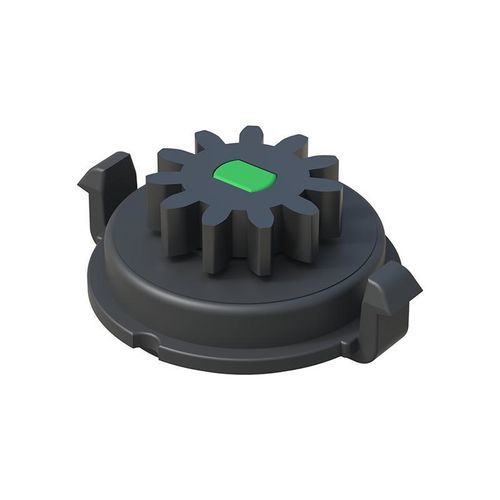

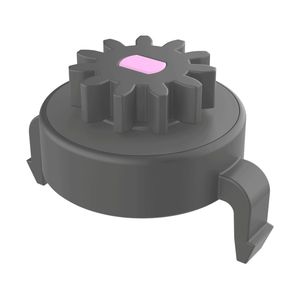

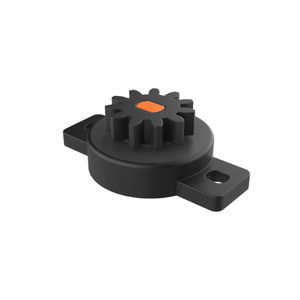

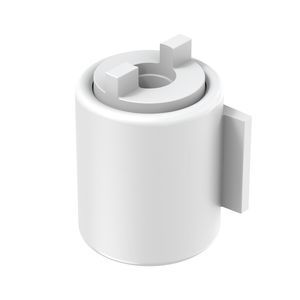

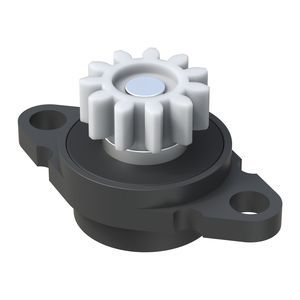

Rotary damper TBD

hydraulicfor panelsfor the automotive industry

Product overview

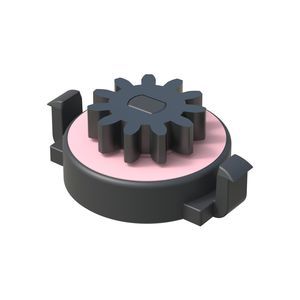

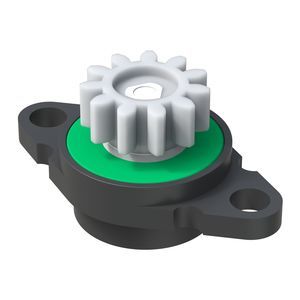

Our rotary dampers are supplied in a range of torque ratings and are primarily used to control the opening stroke of doors and panels. They are also applied in timing mechanisms and other radial movement applications where controlled deceleration is required. Employing a damper mechanism improves the perceived control and smoothness of moving parts.

Compliance and documentation

• Drawing PDF: available (drawings downloadable from product page)
• UL94: not specified
• IP: not specified
• RoHS: yes
• Measures expressed in: Millimeters
• Video: available

Available references
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h (mm) | D (mm) | A (mm) | H (mm) | Panel thickness c (mm) | More Info
50002000035 | 10 | 8,00 | 3,50 | 16,90 | 21,00 | 8,40 | 1,90 |
50002000036 | 11 | 6,60 | 3,00 | 16,90 | 21,00 | 7,90 | 1,90 |
50002000034 | 11 | 8,80 | 3,00 | 16,90 | 21,00 | 7,90 | 1,90 |
50002000037 | 11 | 8,80 | 4,50 | 16,90 | 21,00 | 9,40 | 1,90 |
50002000038 | 11 | 8,80 | 5,00 (3+2) | 16,90 | 21,00 | 9,90 | 1,90 |
50002000039 | 12 | 9,60 | 3,50 | 16,90 | 21,00 | 8,40 | 1,90 |
50002000040 | 13 | 10,40 | 3,00 | 16,90 | 21,00 | 7,90 | 1,90 |
50002000041 | 13 | 10,40 | 5,00 | 16,90 | 21,00 | 9,90 | 1,90 |
50002000042 | 14 | 7,00 | 3,00 | 16,90 | 21,00 | 7,90 | 1,90 |
50002000043 | 16 | 12,80 | 3,00 | 16,90 | 21,00 | 7,90 | 1,90 |
50002000044 | 16 | 12,80 | 5,00 | 16,90 | 21,00 | 9,90 | 1,90 |

Features / technical specifications

• Brand: ISC Plastic Parts
• Product type: Rotary damper
• Model / commercial denomination: TBD
• Compliance: RoHS compliant; UL94 not specified; IP rating not specified
• Measures unit: Millimeters
• Available references and mechanical dimensions listed above
• Drawings: PDF drawings available from product page
• Video demonstration available
