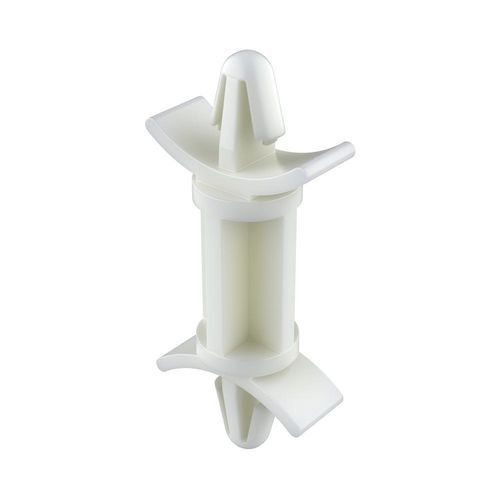

Nylon spacer MCAC

for printed circuitsfor automobiles

Product description
The MCAC double push-fit spacers are push‑fit anchoring components designed to fasten printed circuit boards or to join two panels without screws, nuts or washers. Manufactured in Polyamide 66 (PA66), they provide electrical insulation thanks to a metal‑free construction and are supplied with UL94 flammability ratings suitable for electronic assemblies.

Key features

• Material: Polyamide 66 (PA66)
• Flammability: UL94 V2 and UL94 V0
• Fixing type: Push‑fit anchoring (push‑fit)
• Metal‑free design providing electrical insulation between components
• Available in multiple lengths and hole‑size combinations
• Panel thickness compatibility: 0.80 to 2.00 mm
• Measures in millimeters
• Possible to obtain dyed colors

Product information
Drawing PDF: available (download via site tools). UL94: V2 and V0 options. IP rating: not specified. RoHS: marked as compliant. Video: product video available. Typical applications include PCB mounting and board‑to‑board spacing in industrial electronic assemblies.

Variants / References (examples)
Examples of available references with length L / hole size 1 / hole size 2 / panel thickness:

• 01301400950 | L 4.80 | 4.00 | 4.00 | 0.80–2.00 mm
• 00100900226 | L 6.00 | 4.75 | 4.75 | 0.80–2.00 mm
• 01301400962 | L 11.10 | 4.00 | 4.00 | 0.80–2.00 mm
• 01301400979 | L 22.20 | 4.75 | 4.75 | 0.80–2.00 mm

Full reference table and dimensional drawings available in the datasheet.

Technical specifications

• Model: MCAC
• Material: Polyamide 66 (PA66)
• Flammability ratings: UL94 V2 and UL94 V0
• Fixing type: Push‑fit anchoring
• Metal‑free design for electrical insulation between components
• Available in multiple lengths and hole‑size combinations (see datasheet)
• Panel thickness compatibility: 0.80 to 2.00 mm
• Units of measure: millimeters
• RoHS: compliant (as marked)
• IP rating: not specified on page
• Color: natural, possible to obtain dyed colors
