Threaded knob MTV

knurledroundPOM

Product description

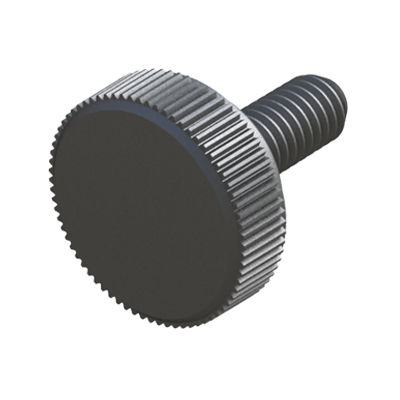

MTV knurled knobs with threaded stud consist of a POM (Polyoxymethylene) body and a zinc-plated steel threaded stud. Designed for manual clamping and adjustment in industrial equipment, they are available in multiple metric thread sizes and lengths for varied assembly needs.

Material details

• POM (Polyoxymethylene) body
• Zinc-plated steel threaded stud

Material properties
POM offers high mechanical strength, good thermal stability and appropriate chemical resistance for general industrial use. Zinc-plated steel studs provide mechanical strength and basic corrosion protection.

Available colours

• Grey RAL 7038
• Black RAL 7021
• Red RAL 3001

Compliance / Additional info
Drawing PDF: available (see product page)
UL94: not indicated
IP: not indicated
RoHS: compliant
Measures expressed in: Millimeters
Video: product video available

Variants / Dimensions (table)
Reference | Metric thread | L | A | C | B | D
02900100001 | M3 | 8.00 | 9.30 | 8.30 | 4.70 | 0.50
02900100002 | M3 | 10.00 | 9.30 | 8.30 | 4.70 | 0.50
02900100003 | M3 | 12.00 | 9.30 | 8.30 | 4.70 | 0.50
02900100004 | M4 | 10.00 | 12.80 | 10.50 | 5.70 | 1.60
02900100005 | M4 | 12.00 | 12.80 | 10.50 | 5.70 | 1.60
02900100006 | M4 | 14.00 | 12.80 | 10.50 | 5.70 | 1.60
02900100007 | M5 | 12.00 | 15.80 | 11.20 | 6.70 | 2.30
02900100008 | M5 | 14.00 | 15.80 | 11.20 | 6.70 | 2.30
02900100009 | M5 | 16.00 | 15.80 | 11.20 | 6.70 | 2.30
02900100010 | M6 | 14.00 | 18.60 | 13.30 | 7.50 | 2.10
02900100011 | M6 | 16.00 | 18.60 | 13.30 | 7.50 | 2.10
02900100012 | M6 | 20.00 | 18.60 | 13.30 | 7.50 | 2.10
02900100013 | M6 | 14.00 | 25.60 | 13.40 | 8.25 | 1.25
02900100014 | M6 | 16.00 | 25.60 | 13.40 | 8.25 | 1.25
02900100015 | M6 | 20.00 | 25.60 | 13.40 | 8.25 | 1.25
02900100016 | M8 | 16.00 | 25.60 | 16.30 | 10.40 | 3.40
02900100017 | M8 | 20.00 | 25.60 | 16.30 | 10.40 | 3.40
02900100018 | M8 | 25.00 | 25.60 | 16.30 | 10.40 | 3.40

Characteristics / technical specifications

• Model: MTV
• Body material: POM (Polyoxymethylene)
• Threaded stud material: Zinc-plated steel
• Available colours: Grey RAL 7038, Black RAL 7021, Red RAL 3001
• Compliance: RoHS compliant
• UL94: not specified
• IP rating: not specified
• Dimensions unit: Millimeters
• Available metric threads: M3, M4, M5, M6, M8
• Multiple variant references available (see table for reference codes and dimensions)
