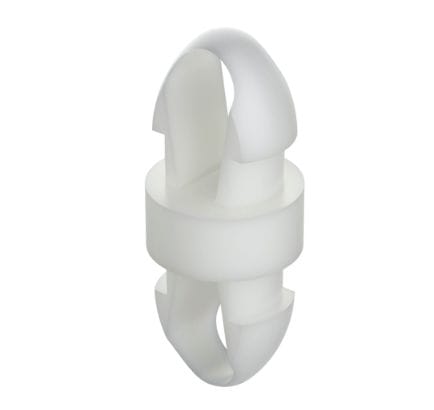

Automobile clip MKHI

fixingcolor-codedUL94 V-0

Description
Locking printed circuit board support that eliminates screws, nuts and lock washers when mounting PCBs on metal chassis or stacking in multiple tiers. A locking clip provides a mechanically secure, reusable connection in pre-drilled or punched holes (2,50 mm), saving assembly time.

Options / Notes

• Possible to get dyed colors

Certifications / Compliance

• UL94: V2 - V0
• RoHS: Compliant

Measurements
Measures expressed in: Millimeters

Multimedia
Video available for the product (demonstration / reference).

Table - References and dimensions
Reference | L | Hole size | Panel thickness | D | A | H | Type
01301400200 | 2,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900122 | 2,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400218 | 2,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400201 | 3,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900123 | 3,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400219 | 3,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
00100900443 | 3,50 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400202 | 4,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900124 | 4,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400220 | 4,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400203 | 5,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900125 | 5,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400221 | 5,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400204 | 6,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900126 | 6,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400222 | 6,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400205 | 7,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
01301400223 | 7,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400206 | 8,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900127 | 8,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400224 | 8,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400207 | 9,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
01301400225 | 9,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400208 | 10,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900128 | 10,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400226 | 10,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400209 | 12,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900129 | 12,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400227 | 12,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400210 | 14,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900130 | 14,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400228 | 14,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400211 | 16,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900131 | 16,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400229 | 16,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400212 | 18,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900444 | 18,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400230 | 18,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400213 | 20,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900445 | 20,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400231 | 20,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400214 | 22,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
00100900446 | 22,00 | 2,50 | 1,60 | 4,60 | 2,90 | 3,56 | 2
01301400232 | 22,00 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400215 | 22,50 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
01301400216 | 26,50 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
01301400233 | 26,50 | 3,50 | 1,57 | 4,60 | 4,10 | 4,70 | 1
01301400217 | 35,00 | 2,50 | 1,57 | 4,60 | 3,00 | 3,70 | 1
