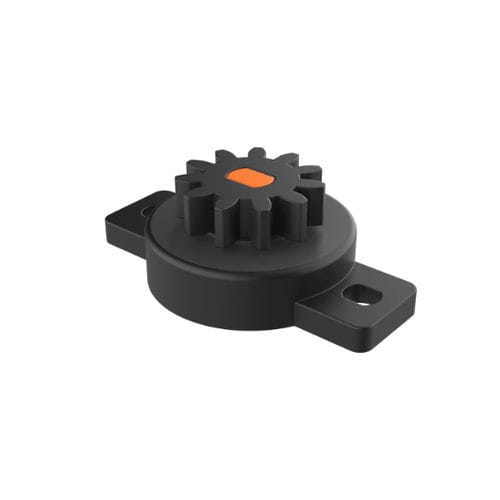

Rotary damper TBA

fluidfor the automotive industryplastic

Product description
Rotary dampers model TBA from ISC Plastic Parts provide controlled deceleration for the opening and closing of doors, lids and panels. They are suitable for radial motion and timing applications. Torque is defined by fluid viscosity and the internal vane geometry; every unit is 100% torque tested to ensure consistent performance.

Applications

• Furniture components (cup holders, central armrests, glove boxes, handles, toilet seats, drawers)
• Home appliances (washing machines, refrigerator doors, trash bins)
• Small-component applications in electronics, medical devices and aerospace

Working conditions

• Temperature range: -40º to +90º
• Service life: 100,000 cycles at 200 rpm at room temperature (1 cycle = 0º → 360º → 0º)

Standards / Certificates / Notes
UL94: not specified
IP: not specified
RoHS: compliant
Measures expressed in: Millimeters
Drawing PDF: available (drawing link on source page)
Video: available (product video present on page)

Reference table (dimensions & data)
Header: Reference | No. Teeth (Z) | Pitch diameter Dp | h | D | A | H | c
50002000057 | 10 | 8,00 | 3,70 | 14,80 | 24,00 | 8,70 | 3,10
50002000003 | 10 | 8,00 | 3,70 | 15,15 | 24,00 | 8,70 | 2,10
50002000046 | 10 | 8,00 | 3,70 | 14,95 | 24,00 | 7,50 | 2,10
50002000058 | 11 | 6,60 | 3,00 | 14,80 | 24,00 | 8,00 | 3,10
50002000004 | 11 | 6,60 | 3,00 | 15,15 | 24,00 | 8,00 | 2,10
50002000047 | 11 | 6,60 | 3,00 | 14,95 | 24,00 | 6,80 | 2,10
50002000056 | 11 | 8,80 | 3,00 | 14,80 | 24,00 | 8,00 | 3,10
50002000001 | 11 | 8,80 | 3,00 | 15,15 | 24,00 | 8,00 | 2,10
50002000045 | 11 | 8,80 | 3,00 | 14,95 | 24,00 | 6,80 | 2,10
50002000059 | 11 | 8,80 | 4,50 | 14,80 | 24,00 | 9,50 | 3,10
50002000005 | 11 | 8,80 | 4,50 | 15,15 | 24,00 | 9,50 | 2,10
50002000048 | 11 | 8,80 | 4,50 | 14,95 | 24,00 | 8,30 | 2,10
50002000060 | 11 | 8,80 | 5,00 (3+2) | 14,80 | 24,00 | 10,00 | 3,10
50002000006 | 11 | 8,80 | 5,00 (3+2) | 15,15 | 24,00 | 10,00 | 2,10
50002000049 | 11 | 8,80 | 5,00 (3+2) | 14,95 | 24,00 | 8,80 | 2,10
50002000061 | 12 | 9,60 | 3,50 | 14,80 | 24,00 | 8,50 | 3,10
50002000062 | 13 | 10,40 | 3,00 | 14,80 | 24,00 | 8,00 | 3,10
50002000050 | 12 | 9,60 | 3,50 | 14,95 | 24,00 | 7,30 | 2,10
50002000051 | 13 | 10,40 | 3,00 | 14,95 | 24,00 | 6,80 | 2,10
50002000007 | 12 | 9,60 | 3,50 | 15,15 | 24,00 | 8,50 | 2,10
50002000008 | 13 | 10,40 | 3,00 | 15,15 | 24,00 | 8,00 | 2,10
50002000063 | 13 | 10,40 | 5,70 | 14,80 | 24,00 | 10,70 | 3,10
50002000009 | 13 | 10,40 | 5,70 | 15,15 | 24,00 | 10,70 | 2,10
50002000052 | 13 | 10,40 | 5,70 | 14,95 | 24,00 | 9,50 | 2,10
50002000064 | 14 | 7,00 | 3,00 | 14,80 | 24,00 | 8,00 | 3,10
50002000010 | 14 | 7,00 | 3,00 | 15,15 | 24,00 | 8,00 | 2,10
50002000053 | 14 | 7,00 | 3,00 | 14,95 | 24,00 | 6,80 | 2,10
50002000065 | 16 | 12,80 | 3,00 | 14,80 | 24,00 | 8,00 | 3,10
50002000011 | 16 | 12,80 | 3,00 | 15,15 | 24,00 | 8,00 | 2,10
50002000054 | 16 | 12,80 | 3,00 | 14,95 | 24,00 | 6,80 | 2,10
50002000066 | 16 | 12,80 | 5,00 | 14,80 | 24,00 | 10,00 | 3,10
50002000012 | 16 | 12,80 | 5,00 | 15,15 | 24,00 | 10,00 | 2,10
50002000055 | 16 | 12,80 | 5,00 | 14,95 | 24,00 | 8,80 | 2,10

Characteristics / technical specifications

• Model: TBA
• Brand: ISC Plastic Parts
• Function: rotary damper for controlled deceleration of doors/panels and timing applications
• Torque determined by fluid viscosity and vane structure; all units 100% torque tested
• Temperature range: -40º to +90º
• Service life: 100,000 cycles at 200 rpm (0º → 360º → 0º)
• Dimensions and multiple references available (see reference table above); measures expressed in millimeters
• RoHS: compliant; UL94 and IP: not specified
• Product media: drawing PDF available, product video available
