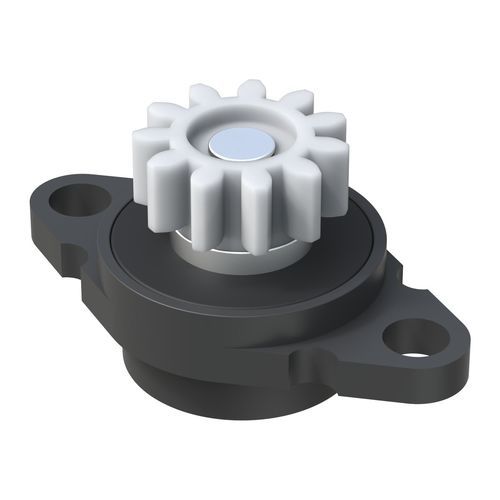

Rotary damper TBIhydraulicfor the automotive industryone-way
Add to favorites
Compare this product
Characteristics
- Function
- rotary
- Technology
- hydraulic
- Applications
- for the automotive industry
- Other characteristics
- one-way
- Diameter
22 mm
(0.9 in)- Height
Max.: 19.8 mm
(0.8 in)Min.: 6 mm
(0.2 in)
Description
Product description
Our dampers, offered in a wide range of torque ratings, are typically used to control the opening stroke of doors or panels. They are also used in timing devices and radial movement applications where controlled deceleration is required. Designed for integration in rotating assemblies to improve motion control and the perceived quality of the final product.
Certifications / compliance
UL94: Not specified
IP: Not specified
RoHS: Compliant
Measurements
Measures expressed in: Millimeters
Available media
Drawing PDF: Available
Video: Available
Dimensional / reference table
Reference | No. Teeth (Z) | Pitch diameter Dp | h / H | D | A | c
50002010201 | 11 | 13,75 | 6,00 / 19,80 | 22,00 | 40,00 | 5,00
Characteristics / technical specifications
Our dampers, offered in a wide range of torque ratings, are typically used to control the opening stroke of doors or panels. They are also used in timing devices and radial movement applications where controlled deceleration is required. Designed for integration in rotating assemblies to improve motion control and the perceived quality of the final product.
Certifications / compliance
UL94: Not specified
IP: Not specified
RoHS: Compliant
Measurements
Measures expressed in: Millimeters
Available media
Drawing PDF: Available
Video: Available
Dimensional / reference table
Reference | No. Teeth (Z) | Pitch diameter Dp | h / H | D | A | c
50002010201 | 11 | 13,75 | 6,00 / 19,80 | 22,00 | 40,00 | 5,00
Characteristics / technical specifications
- Reference: 50002010201
- Model / denomination: TBI
- No. Teeth (Z): 11
- Pitch diameter (Dp): 13,75 mm
- h / H: 6,00 / 19,80 mm
- D: 22,00 mm
- A: 40,00 mm
- c: 5,00 mm
- RoHS: Compliant
- Measures unit: Millimeters
- Media: 2D drawing (PDF) and product video available
