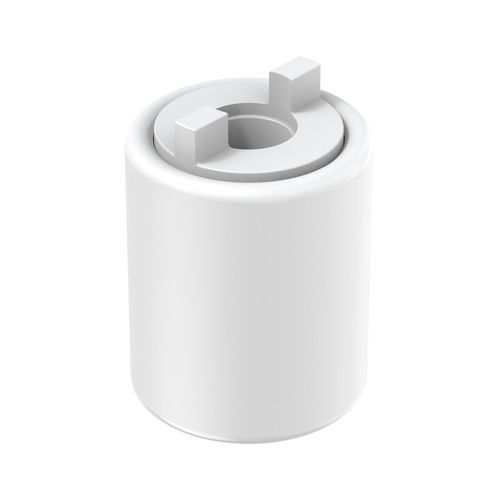

Rotary damper TQE

hydraulicfor the automotive industrybarrel

Description
Our dampers, available in a wide range of torque ratings, are used to control the opening stroke of doors and panels. They are also applied in timing devices and radial-motion applications where controlled deceleration is required. Integration of a damper system improves the smoothness and precision of mechanical movements.

Product certifications and features
UL94: not available
IP: not available
RoHS: compliant
Measures expressed in: Millimeters

Media
Video available demonstrating the product and its operation.

Dimensions / References (table)
Reference | D | L | T | H
50004000009 | 13,00 | 16,00 | 1,50 | 2,00

Technical specifications

• Model: TQE
• Reference: 50004000009
• Diameter (D): 13,00 mm
• Length (L): 16,00 mm
• Thickness (T): 1,50 mm
• Height (H): 2,00 mm
• RoHS: compliant
• UL94: no classification indicated
• IP rating: not specified
• Measures unit: millimeters
• Typical uses: control opening stroke of doors or panels, timing devices, radial movement applications
