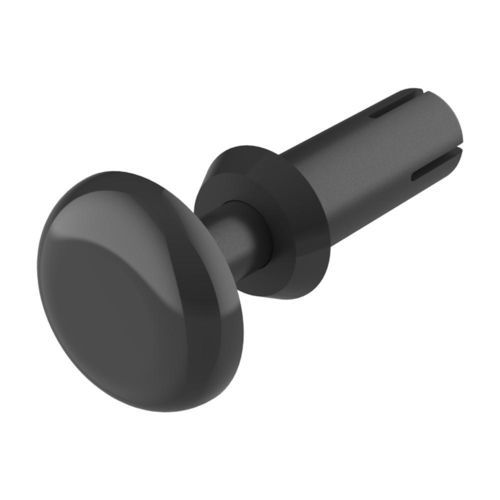

Large head rivet MRMHMnylonplasticblack
Add to favorites
Compare this product
Characteristics
- Head
- large head
- Material
- nylon
- Rod material
- plastic
- Color
- black, white
- Other characteristics
- expanding
- Body diameter
Min.: 1.9 mm
(0.07 in)Max.: 6.1 mm
(0.24 in)- Min. and max. grip range
Min.: 0.6 mm
(0.02 in)Max.: 25.5 mm
(1 in)- Length
Min.: 2.29 mm
(0.09 in)Max.: 28.5 mm
(1.12 in)- Head diameter
Min.: 3.7 mm
(0.15 in)Max.: 12.1 mm
(0.48 in)- Head thickness
Min.: 0.7 mm
(0.03 in)Max.: 3 mm
(0.12 in)
Description
Product description
The MRMHM snap rivet is designed for quick push-fit assemblies. It installs without tools: position in the hole and press. The oversized head facilitates insertion while the legs expand to lock panels or components permanently.
Combinations and features
Some rivets are offered in the following combinations and features:
Certifications & Compliance
RoHS: Compliant
UL94: V2 - V0
IP: None indicated
Measures
Measures expressed in: Millimeters
Files & Media
Drawing: PDF available (drawing available for product).
Video: Demonstration video available for product.
Variants table (Reference | Hole size | Panel thickness | D | L | H | d | Type)
Reference | Hole size | Panel thickness | D | L | H | d | Type
00100300537 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,29 | 1,20 | 1,90 | 1
01300100530 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,40 | 1,20 | 2,00 | 1
01300100531 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,20 | 1,20 | 2,00 | 1
00100300538 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,30 | 1,20 | 1,90 | 1
00100300539 | 2,10 to 2,20 | 2,10 to 2,80 | 4,15 | 4,10 | 1,20 | 2,00 | 1
01300100532 | 2,10 to 2,20 | 2,10 to 2,80 | 4,20 | 4,00 | 1,20 | 2,00 | 1
01300100533 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,80 | 1,20 | 2,00 | 1
00100300540 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,83 | 1,20 | 1,90 | 1
01300100534 | 2,10 to 2,20 | 3,70 to 4,40 | 4,20 | 5,60 | 1,20 | 2,00 | 1
00100300597 | 2,10 to 2,20 | 3,80 to 4,80 | 4,20 | 5,60 | 1,20 | 1,90 | 1
00100300541 | 2,10 to 2,20 | 4,40 to 5,00 | 4,20 | 6,35 | 1,20 | 1,90 | 1
01300100535 | 2,10 to 2,20 | 4,40 to 5,20 | 4,20 | 6,40 | 1,20 | 2,00 | 1
00100300730 | 2,11 to 2,21 | 5,21 to 5,72 | 4,19 | 7,50 | 1,20 | 1,93 | 1
00100300542 | 2,60 to 2,70 | 1,00 to 2,00 | 5,00 | 3,30 | 1,40 | 2,50 | 1
00100300543 | 2,60 to 2,70 | 2,70 to 3,60 | 5,00 | 4,83 | 1,40 | 2,50 | 1
00100300544 | 2,60 to 2,70 | 3,40 to 4,30 | 3,70 | 5,60 | 0,70 | 2,50 | 1
00100300591 | 2,60 to 2,70 | 3,60 to 5,00 | 5,00 | 6,30 | 1,40 | 2,50 | 1
00100300592 | 2,60 to 2,70 | 4,30 to 5,80 | 5,00 | 7,10 | 1,40 | 2,50 | 1
01300100536 | 2,70 to 2,80 | 1,00 to 2,00 | 5,00 | 3,20 | 1,40 | 2,60 | 1
01300100537 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
03500100998 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
00100300276 | 2,70 to 2,80 | 2,00 to 3,00 | 5,10 | 4,30 | 1,70 | 2,60 | 2
01300100538 | 2,70 to 2,80 | 2,70 to 3,60 | 5,00 | 4,80 | 1,40 | 2,60 | 1
00100300530 | 2,70 to 2,80 | 3,10 to 3,90 | 5,20 | 5,20 | 1,60 | 2,65 | 2
01300100539 | 2,70 to 2,80 | 3,40 to 4,30 | 5,00 | 5,50 | 1,40 | 2,60 | 1
01300100540 | 2,70 to 2,80 | 4,30 to 5,20 | 5,00 | 6,40 | 1,40 | 2,60 | 1
01300100541 | 2,70 to 2,80 | 5,10 to 6,00 | 5,00 | 7,20 | 1,40 | 2,60 | 1
00100300593 | 3,00 to 3,20 | 5,00 to 6,00 | 6,40 | 7,60 | 1,60 | 3,00 | 1
01300100542 | 3,10 to 3,20 | 1,00 to 2,00 | 6,40 | 3,50 | 1,60 | 3,00 | 1
00100300271 | 3,10 to 3,20 | 1,30 to 2,50 | 6,40 | 3,50 | 1,60 | 3,00 | 2
00100300545 | 3,10 to 3,20 | 1,90 to 3,00 | 6,20 | 4,65 | 1,50 | 3,00 | 1
01300100543 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,50 | 1,60 | 3,00 | 1
00100300550 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,57 | 1,60 | 3,00 | 1
01300100544 | 3,10 to 3,20 | 2,50 to 3,50 | 6,40 | 5,00 | 1,60 | 3,00 | 1
01300100545 | 3,10 to 3,20 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,00 | 1
01300100546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,50 | 1,60 | 3,00 | 1
00100300546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,60 | 1,60 | 3,00 | 1
01300100547 | 3,10 to 3,20 | 5,00 to 6,00 | 6,40 | 7,50 | 1,60 | 3,00 | 1
00100300547 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,00 | 1
01300100548 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 8,00 | 1,60 | 3,00 | 1
00100300548 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 8,90 | 1,60 | 3,00 | 1
01300100549 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 9,00 | 1,60 | 3,00 | 1
00100300549 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 9,91 | 1,60 | 3,00 | 1
01300100550 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 10,00 | 1,60 | 3,00 | 1
00100300281 | 3,10 to 3,20 | 10,20 to 11,20 | 6,40 | 13,20 | 1,70 | 3,00 | 3
01300100551 | 3,10 to 3,20 | 11,50 to 13,00 | 6,40 | 14,50 | 1,60 | 3,00 | 1
01300100552 | 3,10 to 3,20 | 20,50 to 21,50 | 6,40 | 23,00 | 1,60 | 3,00 | 1
00100300272 | 3,20 to 3,30 | 3,00 to 4,00 | 6,30 | 5,50 | 1,60 | 3,00 | 1
00100300284 | 3,50 to 3,60 | 1,50 to 3,00 | 6,40 | 4,60 | 1,50 | 3,40 | 2
00100300277 | 3,50 to 3,60 | 3,00 to 4,00 | 6,40 | 5,60 | 1,50 | 3,40 | 2
01300100553 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,50 | 1,60 | 3,50 | 2
00100300551 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,56 | 1,60 | 3,40 | 2
00100300552 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,32 | 1,60 | 3,40 | 2
01300100554 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,50 | 1,60 | 3,50 | 2
01300100555 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,00 | 1,60 | 3,50 | 2
00100300553 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,08 | 1,60 | 3,40 | 2
01300100556 | 3,60 to 3,70 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,50 | 2
00100300555 | 3,60 to 3,70 | 4,50 to 5,50 | 6,40 | 7,11 | 1,60 | 3,40 | 2
00100300556 | 3,60 to 3,70 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,40 | 2
00100300557 | 3,60 to 3,70 | 5,70 to 6,50 | 6,40 | 8,90 | 1,60 | 4,00 | 2
00100300563 | 4,10 to 4,20 | 7,50 to 8,50 | 8,00 | 10,41 | 2,20 | 4,90 | 2
00100300567 | 4,10 to 4,20 | 0,80 to 1,60 | 11,10 | 4,75 | 3,00 | 6,10 | 2
00100300568 | 4,10 to 4,20 | 1,60 to 3,20 | 11,10 | 6,35 | 3,00 | 6,10 | 2
00100300569 | 4,10 to 4,20 | 3,20 to 4,70 | 11,10 | 7,92 | 3,00 | 6,10 | 2
00100300570 | 5,10 to 5,20 | 1,50 to 2,50 | 9,00 | 4,50 | 2,20 | 5,00 | 2
00100300561 | 5,10 to 5,20 | 2,50 to 3,50 | 8,90 | 5,60 | 2,20 | 4,90 | 2
00100300562 | 5,10 to 5,20 | 2,70 to 4,30 | 8,90 | 6,60 | 2,20 | 4,90 | 2
01300100572 | 5,10 to 5,20 | 3,50 to 4,50 | 9,00 | 6,50 | 2,20 | 5,00 | 2
01300100573 | 5,10 to 5,20 | 4,50 to 5,50 | 9,00 | 7,50 | 2,20 | 5,00 | 2
01300100574 | 5,10 to 5,20 | 5,50 to 6,50 | 9,00 | 8,50 | 2,20 | 5,00 | 2
00100300533 | 5,10 to 5,20 | 5,51 to 6,50 | 9,00 | 8,38 | 2,10 | 5,00 | 2
00100300282 | 5,10 to 5,20 | 5,84 to 7,62 | 8,90 | 9,40 | 2,40 | 5,00 | 2
01300100575 | 5,10 to 5,20 | 6,50 to 7,50 | 9,00 | 9,50 | 2,20 | 5,00 | 2
00100300563 | 5,10 to 5,20 | 7,50 to 8,50 | 8,90 | 10,41 | 2,20 | 4,90 | 2
01300100576 | 5,10 to 5,20 | 7,50 to 8,50 | 9,00 | 10,50 | 2,20 | 5,00 | 2
00100300275 | 5,20 to 5,30 | 4,00 to 5,00 | 8,90 | 7,00 | 1,90 | 5,00 | 2
01300100577 | 5,90 to 6,00 | 3,00 to 4,50 | 12,00 | 6,30 | 2,70 | 5,80 | 2
01300100578 | 6,10 to 6,20 | 2,50 to 4,00 | 12,00 | 6,00 | 2,50 | 6,00 | 2
00100300565 | 6,10 to 6,20 | 2,50 to 4,00 | 12,10 | 6,00 | 2,50 | 6,00 | 2
00100300566 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100579 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100580 | 6,10 to 6,20 | 21,50 to 23,50 | 12,00 | 26,00 | 3,00 | 6,00 | 2
01300100581 | 6,10 to 6,20 | 23,50 to 25,50 | 12,00 | 28,50 | 3,00 | 6,00 | 2
The MRMHM snap rivet is designed for quick push-fit assemblies. It installs without tools: position in the hole and press. The oversized head facilitates insertion while the legs expand to lock panels or components permanently.
Combinations and features
Some rivets are offered in the following combinations and features:
- Materials: PA6, PA66 and PA46 (heat resistant).
- UL 94 Standard: V0 and V2.
- Colours: black, white, bronze, and special colors upon request.
Certifications & Compliance
RoHS: Compliant
UL94: V2 - V0
IP: None indicated
Measures
Measures expressed in: Millimeters
Files & Media
Drawing: PDF available (drawing available for product).
Video: Demonstration video available for product.
Variants table (Reference | Hole size | Panel thickness | D | L | H | d | Type)
Reference | Hole size | Panel thickness | D | L | H | d | Type
00100300537 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,29 | 1,20 | 1,90 | 1
01300100530 | 2,10 to 2,20 | 0,60 to 1,20 | 4,20 | 2,40 | 1,20 | 2,00 | 1
01300100531 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,20 | 1,20 | 2,00 | 1
00100300538 | 2,10 to 2,20 | 1,30 to 2,00 | 4,20 | 3,30 | 1,20 | 1,90 | 1
00100300539 | 2,10 to 2,20 | 2,10 to 2,80 | 4,15 | 4,10 | 1,20 | 2,00 | 1
01300100532 | 2,10 to 2,20 | 2,10 to 2,80 | 4,20 | 4,00 | 1,20 | 2,00 | 1
01300100533 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,80 | 1,20 | 2,00 | 1
00100300540 | 2,10 to 2,20 | 2,90 to 3,60 | 4,20 | 4,83 | 1,20 | 1,90 | 1
01300100534 | 2,10 to 2,20 | 3,70 to 4,40 | 4,20 | 5,60 | 1,20 | 2,00 | 1
00100300597 | 2,10 to 2,20 | 3,80 to 4,80 | 4,20 | 5,60 | 1,20 | 1,90 | 1
00100300541 | 2,10 to 2,20 | 4,40 to 5,00 | 4,20 | 6,35 | 1,20 | 1,90 | 1
01300100535 | 2,10 to 2,20 | 4,40 to 5,20 | 4,20 | 6,40 | 1,20 | 2,00 | 1
00100300730 | 2,11 to 2,21 | 5,21 to 5,72 | 4,19 | 7,50 | 1,20 | 1,93 | 1
00100300542 | 2,60 to 2,70 | 1,00 to 2,00 | 5,00 | 3,30 | 1,40 | 2,50 | 1
00100300543 | 2,60 to 2,70 | 2,70 to 3,60 | 5,00 | 4,83 | 1,40 | 2,50 | 1
00100300544 | 2,60 to 2,70 | 3,40 to 4,30 | 3,70 | 5,60 | 0,70 | 2,50 | 1
00100300591 | 2,60 to 2,70 | 3,60 to 5,00 | 5,00 | 6,30 | 1,40 | 2,50 | 1
00100300592 | 2,60 to 2,70 | 4,30 to 5,80 | 5,00 | 7,10 | 1,40 | 2,50 | 1
01300100536 | 2,70 to 2,80 | 1,00 to 2,00 | 5,00 | 3,20 | 1,40 | 2,60 | 1
01300100537 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
03500100998 | 2,70 to 2,80 | 2,00 to 3,00 | 5,00 | 4,20 | 1,40 | 2,60 | 1
00100300276 | 2,70 to 2,80 | 2,00 to 3,00 | 5,10 | 4,30 | 1,70 | 2,60 | 2
01300100538 | 2,70 to 2,80 | 2,70 to 3,60 | 5,00 | 4,80 | 1,40 | 2,60 | 1
00100300530 | 2,70 to 2,80 | 3,10 to 3,90 | 5,20 | 5,20 | 1,60 | 2,65 | 2
01300100539 | 2,70 to 2,80 | 3,40 to 4,30 | 5,00 | 5,50 | 1,40 | 2,60 | 1
01300100540 | 2,70 to 2,80 | 4,30 to 5,20 | 5,00 | 6,40 | 1,40 | 2,60 | 1
01300100541 | 2,70 to 2,80 | 5,10 to 6,00 | 5,00 | 7,20 | 1,40 | 2,60 | 1
00100300593 | 3,00 to 3,20 | 5,00 to 6,00 | 6,40 | 7,60 | 1,60 | 3,00 | 1
01300100542 | 3,10 to 3,20 | 1,00 to 2,00 | 6,40 | 3,50 | 1,60 | 3,00 | 1
00100300271 | 3,10 to 3,20 | 1,30 to 2,50 | 6,40 | 3,50 | 1,60 | 3,00 | 2
00100300545 | 3,10 to 3,20 | 1,90 to 3,00 | 6,20 | 4,65 | 1,50 | 3,00 | 1
01300100543 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,50 | 1,60 | 3,00 | 1
00100300550 | 3,10 to 3,20 | 2,00 to 3,00 | 6,40 | 4,57 | 1,60 | 3,00 | 1
01300100544 | 3,10 to 3,20 | 2,50 to 3,50 | 6,40 | 5,00 | 1,60 | 3,00 | 1
01300100545 | 3,10 to 3,20 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,00 | 1
01300100546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,50 | 1,60 | 3,00 | 1
00100300546 | 3,10 to 3,20 | 4,00 to 5,00 | 6,40 | 6,60 | 1,60 | 3,00 | 1
01300100547 | 3,10 to 3,20 | 5,00 to 6,00 | 6,40 | 7,50 | 1,60 | 3,00 | 1
00100300547 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,00 | 1
01300100548 | 3,10 to 3,20 | 5,50 to 6,50 | 6,40 | 8,00 | 1,60 | 3,00 | 1
00100300548 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 8,90 | 1,60 | 3,00 | 1
01300100549 | 3,10 to 3,20 | 6,50 to 7,50 | 6,40 | 9,00 | 1,60 | 3,00 | 1
00100300549 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 9,91 | 1,60 | 3,00 | 1
01300100550 | 3,10 to 3,20 | 7,50 to 8,50 | 6,40 | 10,00 | 1,60 | 3,00 | 1
00100300281 | 3,10 to 3,20 | 10,20 to 11,20 | 6,40 | 13,20 | 1,70 | 3,00 | 3
01300100551 | 3,10 to 3,20 | 11,50 to 13,00 | 6,40 | 14,50 | 1,60 | 3,00 | 1
01300100552 | 3,10 to 3,20 | 20,50 to 21,50 | 6,40 | 23,00 | 1,60 | 3,00 | 1
00100300272 | 3,20 to 3,30 | 3,00 to 4,00 | 6,30 | 5,50 | 1,60 | 3,00 | 1
00100300284 | 3,50 to 3,60 | 1,50 to 3,00 | 6,40 | 4,60 | 1,50 | 3,40 | 2
00100300277 | 3,50 to 3,60 | 3,00 to 4,00 | 6,40 | 5,60 | 1,50 | 3,40 | 2
01300100553 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,50 | 1,60 | 3,50 | 2
00100300551 | 3,60 to 3,70 | 1,20 to 2,10 | 6,40 | 3,56 | 1,60 | 3,40 | 2
00100300552 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,32 | 1,60 | 3,40 | 2
01300100554 | 3,60 to 3,70 | 2,10 to 3,00 | 6,40 | 4,50 | 1,60 | 3,50 | 2
01300100555 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,00 | 1,60 | 3,50 | 2
00100300553 | 3,60 to 3,70 | 2,70 to 3,60 | 6,40 | 5,08 | 1,60 | 3,40 | 2
01300100556 | 3,60 to 3,70 | 3,00 to 4,00 | 6,40 | 5,50 | 1,60 | 3,50 | 2
00100300555 | 3,60 to 3,70 | 4,50 to 5,50 | 6,40 | 7,11 | 1,60 | 3,40 | 2
00100300556 | 3,60 to 3,70 | 5,50 to 6,50 | 6,40 | 7,87 | 1,60 | 3,40 | 2
00100300557 | 3,60 to 3,70 | 5,70 to 6,50 | 6,40 | 8,90 | 1,60 | 4,00 | 2
00100300563 | 4,10 to 4,20 | 7,50 to 8,50 | 8,00 | 10,41 | 2,20 | 4,90 | 2
00100300567 | 4,10 to 4,20 | 0,80 to 1,60 | 11,10 | 4,75 | 3,00 | 6,10 | 2
00100300568 | 4,10 to 4,20 | 1,60 to 3,20 | 11,10 | 6,35 | 3,00 | 6,10 | 2
00100300569 | 4,10 to 4,20 | 3,20 to 4,70 | 11,10 | 7,92 | 3,00 | 6,10 | 2
00100300570 | 5,10 to 5,20 | 1,50 to 2,50 | 9,00 | 4,50 | 2,20 | 5,00 | 2
00100300561 | 5,10 to 5,20 | 2,50 to 3,50 | 8,90 | 5,60 | 2,20 | 4,90 | 2
00100300562 | 5,10 to 5,20 | 2,70 to 4,30 | 8,90 | 6,60 | 2,20 | 4,90 | 2
01300100572 | 5,10 to 5,20 | 3,50 to 4,50 | 9,00 | 6,50 | 2,20 | 5,00 | 2
01300100573 | 5,10 to 5,20 | 4,50 to 5,50 | 9,00 | 7,50 | 2,20 | 5,00 | 2
01300100574 | 5,10 to 5,20 | 5,50 to 6,50 | 9,00 | 8,50 | 2,20 | 5,00 | 2
00100300533 | 5,10 to 5,20 | 5,51 to 6,50 | 9,00 | 8,38 | 2,10 | 5,00 | 2
00100300282 | 5,10 to 5,20 | 5,84 to 7,62 | 8,90 | 9,40 | 2,40 | 5,00 | 2
01300100575 | 5,10 to 5,20 | 6,50 to 7,50 | 9,00 | 9,50 | 2,20 | 5,00 | 2
00100300563 | 5,10 to 5,20 | 7,50 to 8,50 | 8,90 | 10,41 | 2,20 | 4,90 | 2
01300100576 | 5,10 to 5,20 | 7,50 to 8,50 | 9,00 | 10,50 | 2,20 | 5,00 | 2
00100300275 | 5,20 to 5,30 | 4,00 to 5,00 | 8,90 | 7,00 | 1,90 | 5,00 | 2
01300100577 | 5,90 to 6,00 | 3,00 to 4,50 | 12,00 | 6,30 | 2,70 | 5,80 | 2
01300100578 | 6,10 to 6,20 | 2,50 to 4,00 | 12,00 | 6,00 | 2,50 | 6,00 | 2
00100300565 | 6,10 to 6,20 | 2,50 to 4,00 | 12,10 | 6,00 | 2,50 | 6,00 | 2
00100300566 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100579 | 6,10 to 6,20 | 3,50 to 5,50 | 12,00 | 8,00 | 3,00 | 6,00 | 2
01300100580 | 6,10 to 6,20 | 21,50 to 23,50 | 12,00 | 26,00 | 3,00 | 6,00 | 2
01300100581 | 6,10 to 6,20 | 23,50 to 25,50 | 12,00 | 28,50 | 3,00 | 6,00 | 2
VIDEO
Catalogs
Other ISC PLASTIC PARTS products
Automotive
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
About DirectIndustry
DirectIndustry is a marketplace that offers B2B players a complete experience, from product sourcing to purchase. DirectIndustry is an entity of VirtualExpo Group.
Are you a buyer?
Are you a supplier?
