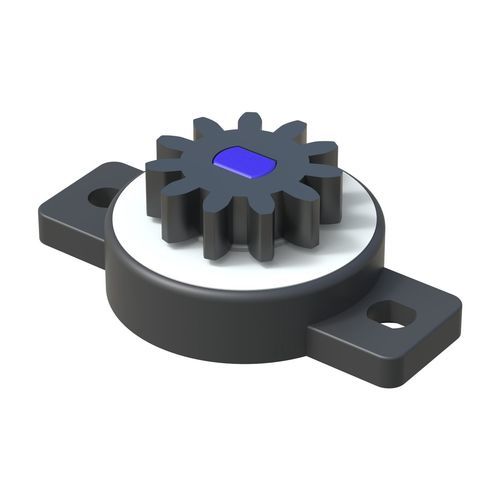

Rotary damper TBE

hydraulicfor the automotive industryone-way

Description
One-way rotary damper model TBE designed to control and slow rotational movement in opening applications. Available in multiple gear tooth configurations to match different stroke profiles and installation constraints. Typically used to control the opening stroke of doors, hatches or panels; variants can also serve in timing or radial-movement applications.

Applications

• Controlled opening of doors, panels and covers
• Timing and return-motion mechanisms
• Integration into assemblies requiring defined rotational damping

Certifications & compliance

• RoHS: Yes
• UL94: Not specified / No data
• IP rating: Not specified / No data

Measurements
Measures expressed in: Millimeters

Media

• Technical drawings: Drawing PDF available (2D drawings)
• Video: Product video available
• Images: Render and technical drawing images available

Variants (table)
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h / H (mm) | D (mm) | A (mm) | c (mm)
50002000101 | 10 | 8.00 | 3.50 / 8.50 | 15.20 | 24.00 | 2.10
50002000102 | 11 | 6.60 | 3.00 / 8.00 | 15.20 | 24.00 | 2.10
50002000100 | 11 | 8.80 | 3.00 / 8.00 | 15.20 | 24.00 | 2.10
50002000103 | 11 | 8.80 | 4.50 / 9.50 | 15.20 | 24.00 | 2.10
50002000104 | 11 | 8.80 | 5.00 (3+2) / 10.00 | 15.20 | 24.00 | 2.10
50002000106 | 12 | 9.60 | 3.50 / 8.00 | 15.20 | 24.00 | 2.10
50002000105 | 12 | 9.60 | 3.50 / 8.50 | 15.20 | 24.00 | 2.10
50002000107 | 13 | 10.40 | 5.00 / 10.00 | 15.20 | 24.00 | 2.10
50002000108 | 14 | 7.00 | 3.00 / 8.00 | 15.20 | 24.00 | 2.10
50002000109 | 16 | 12.80 | 3.00 / 8.00 | 15.20 | 24.00 | 2.10
50002000110 | 16 | 12.80 | 5.00 / 10.00 | 15.20 | 24.00 | 2.10

Technical specifications

• Model: TBE
• Brand: ISC Plastic Parts
• RoHS compliant: Yes
• UL94: Not specified
• IP rating: Not specified
• Measurement unit: Millimeters
• Available media: 2D drawing (PDF), product video, render and drawing images
• Number of listed variants: 11 (references provided in table above)
