Rotary damper TBGhydraulicfor automobilesone-way
Add to favorites
Compare this product
Characteristics
- Function
- rotary
- Technology
- hydraulic
- Applications
- for automobiles
- Other characteristics
- one-way
- Diameter
15 mm
(0.6 in)- Height
Min.: 3 mm
(0.1 in)Max.: 10 mm
(0.4 in)
Description
Product description

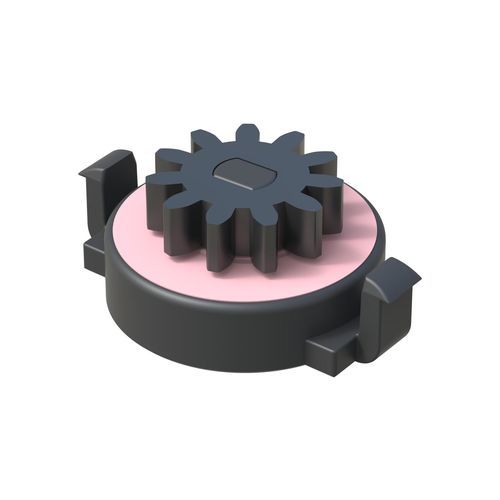

Our TBG one-way rotary dampers are available in a wide range of torque ratings and are designed to control the opening stroke of doors or panels. They are also used in timing devices and other radial movement applications, providing controlled deceleration and smooth motion.
General information
Table - References
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h / H (mm) | D (mm) | A (mm) | Panel thickness c (mm)
50002000112 | 10 | 8.00 | 3.50 / 8.50 | 14.95 | 20.80 | 2.10
50002000113 | 11 | 6.60 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000111 | 11 | 8.80 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000114 | 11 | 8.80 | 4.50 / 9.50 | 14.95 | 20.80 | 2.10
50002000115 | 11 | 8.80 | 5.00 (3+2) / 10.00 | 14.95 | 20.80 | 2.10
50002000117 | 12 | 9.60 | 3.50 / 8.00 | 14.95 | 20.80 | 2.10
50002000116 | 12 | 9.60 | 3.50 / 8.50 | 14.95 | 20.80 | 2.10
50002000118 | 13 | 10.40 | 5.00 / 10.00 | 14.95 | 20.80 | 2.10
50002000119 | 14 | 7.00 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000120 | 16 | 12.80 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000121 | 16 | 12.80 | 5.00 / 10.00 | 14.95 | 20.80 | 2.10
Technical characteristics / specifications
Our TBG one-way rotary dampers are available in a wide range of torque ratings and are designed to control the opening stroke of doors or panels. They are also used in timing devices and other radial movement applications, providing controlled deceleration and smooth motion.
General information
- Drawing PDF: Available
- UL94: Not applicable / no classification indicated
- IP: Not indicated
- RoHS: Compliant
- Measures expressed in: Millimeters
- Video: Available
Table - References
Reference | No. Teeth (Z) | Pitch diameter Dp (mm) | h / H (mm) | D (mm) | A (mm) | Panel thickness c (mm)
50002000112 | 10 | 8.00 | 3.50 / 8.50 | 14.95 | 20.80 | 2.10
50002000113 | 11 | 6.60 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000111 | 11 | 8.80 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000114 | 11 | 8.80 | 4.50 / 9.50 | 14.95 | 20.80 | 2.10
50002000115 | 11 | 8.80 | 5.00 (3+2) / 10.00 | 14.95 | 20.80 | 2.10
50002000117 | 12 | 9.60 | 3.50 / 8.00 | 14.95 | 20.80 | 2.10
50002000116 | 12 | 9.60 | 3.50 / 8.50 | 14.95 | 20.80 | 2.10
50002000118 | 13 | 10.40 | 5.00 / 10.00 | 14.95 | 20.80 | 2.10
50002000119 | 14 | 7.00 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000120 | 16 | 12.80 | 3.00 / 8.00 | 14.95 | 20.80 | 2.10
50002000121 | 16 | 12.80 | 5.00 / 10.00 | 14.95 | 20.80 | 2.10
Technical characteristics / specifications
- Model / Denomination: TBG
- Manufacturer / Brand: ISC Plastic Parts
- Application: Control opening stroke of doors or panels; timing devices and radial movement applications
- Torque: Available in a wide range of torque ratings (see references)
- Standards / Compliance: RoHS compliant; UL94 classification not indicated
- Measurement units: Millimeters
- Available product references (variants): 50002000111, 50002000112, 50002000113, 50002000114, 50002000115, 50002000116, 50002000117, 50002000118, 50002000119, 50002000120, 50002000121
- Video available for product demonstration
- Technical drawings available (PDF)
