Countersunk head rivet MRTMH
polyamidedisassemblablerepeating

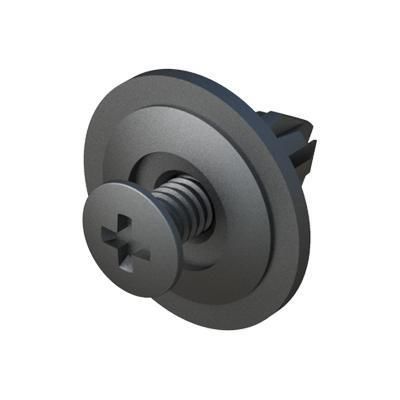

Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating
Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating
Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating - image - 2
Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating - image - 3
Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating - image - 4
Countersunk head rivet - MRTMH - ISC PLASTIC PARTS - polyamide / disassemblable / repeating - image - 5
Add to favorites
Compare this product

Characteristics

Head
countersunk head
Material
polyamide
Other characteristics
colored, disassemblable, repeating, for automotive applications
Body diameter

Min.: 5.84 mm
(0.23 in)

Max.: 8.8 mm
(0.35 in)

Min. and max. grip range

Min.: 2.36 mm
(0.09 in)

Max.: 6.7 mm
(0.26 in)

Hole diameter

6.4 mm, 7.1 mm, 9 mm
(0.3 in, 0.3 in, 0.4 in)

Length

Min.: 10.72 mm
(0.42 in)

Max.: 15 mm
(0.59 in)

Head diameter

Min.: 14.1 mm
(0.56 in)

Max.: 17.86 mm
(0.7 in)

Head thickness

Min.: 1.86 mm
(0.07 in)

Max.: 3.32 mm
(0.13 in)

Description

Product description
This two-piece reusable Phillips screw rivet MRTMH is designed to fasten larger components or small assemblies to mating panels. Pressing or tapping the Phillips screw through the rivet body expands the legs to create a secure insulated connection. The screw can be removed with a Phillips screwdriver, enabling reuse.

Features
  • Two-piece reusable design (body + Phillips screw/pin)
  • Suitable for fastening larger components or small assemblies to panels
  • Installation by pressing/tapping the screw through the body; removable with a Phillips screwdriver for reuse
  • Dyed color options available
  • Dimensions expressed in millimeters


Compliance / Certifications
  • UL94: V2
  • RoHS: Compliant
  • IP: Not specified / no rating indicated


References and dimensions (table)
Reference | Hole size | Panel thickness | L | H | D | C | d | A
00100300269 | 6,35 | 3,56 | 11,51 | 3,32 | 17,86 | 2,38 | 5,97 | 7,94
00100300268 | 6,35 | 3,96 | 10,72 | 2,60 | 15,08 | 2,38 | 5,84 | 8,99
01300100286 | 6,40 | 3,20 to 4,40 | 12,70 | 3,00 | 14,90 | 2,00 | 6,30 | 9,90
00100300270 | 7,14 | 2,36 | 11,11 | 1,86 | 14,10 | 1,65 | 6,86 | 9,90
01300100287 | 9,00 x 9,00 | 6,70 | 15,00 | 3,20 | 17,00 x 17,00 | 3,20 | 8,80 | 11,80

Related information
  • Family: MRTMH
  • Materials (some references): Polyamide (UL94 V2) and POM (UL94 HB)
  • Installation note: insert body into panel hole and rap the head of the pin with a hammer or impact tool; removal with a Phillips screwdriver permits reuse
  • 2D drawings (PDF) and demonstration video available per reference


Technical specifications
  • Family / Model: MRTMH
  • Type: Two-piece reusable Phillips screw rivet
  • Function: Fastening larger components or small assemblies to panels; insulated connection
  • Removal: Removable with Phillips screwdriver (reusable)
  • Available finishes: Dyed colors possible
  • Units: Dimensions in millimeters
  • UL94 rating: V2
  • RoHS: Yes
  • IP rating: Not specified
  • References and dimensional data: see table above
