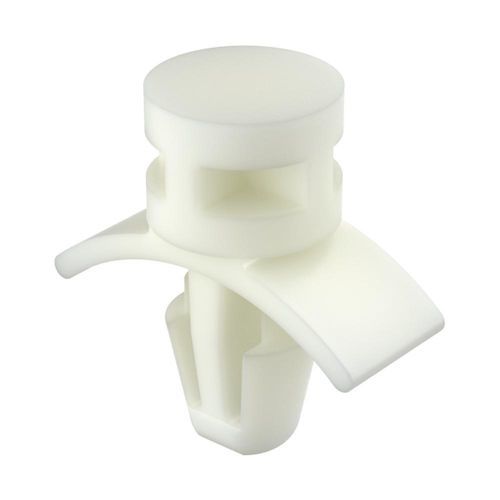

Plastic spacer MSPfor printed circuitsfor automobiles
Add to favorites
Compare this product
Characteristics
- Material
- plastic
- Applications
- for printed circuits, for automobiles
Description
Product description
The MSP push-in spacer is designed to be installed at the center of printed circuit boards to prevent contact between components and to maintain a defined separation between surfaces. It is suitable for the panel thicknesses and hole sizes listed below and is delivered in the reference dimensions indicated.
Options
Standards and compliance
UL94: V2
IP: -
RoHS: Yes
Measures expressed in: Millimeters
Video available
References / Dimensions (mm)
Reference | L | Hole size (A) | Panel thickness (G) | D | B | C | H
00100900239 | 6,40 | 4,75 | 1,60 | 7,14 | 14,29 | 5,50 | 5,50
00101100198 | 11,40 | 4,75 | 2,30 | 8,00 | 14,29 | 5,70 | 5,70
Technical specifications
The MSP push-in spacer is designed to be installed at the center of printed circuit boards to prevent contact between components and to maintain a defined separation between surfaces. It is suitable for the panel thicknesses and hole sizes listed below and is delivered in the reference dimensions indicated.
Options
- Possible to get dyed colors
Standards and compliance
UL94: V2
IP: -
RoHS: Yes
Measures expressed in: Millimeters
Video available
References / Dimensions (mm)
Reference | L | Hole size (A) | Panel thickness (G) | D | B | C | H
00100900239 | 6,40 | 4,75 | 1,60 | 7,14 | 14,29 | 5,50 | 5,50
00101100198 | 11,40 | 4,75 | 2,30 | 8,00 | 14,29 | 5,70 | 5,70
Technical specifications
- Application: spacer for PCB center to avoid contact and provide separation between surfaces
- UL94 flammability rating: V2
- RoHS: compliant
- IP rating: not specified
- Measures unit: millimeters
- Possible to get dyed colors
- Video demonstration available
- References and dimensional data included above
