Nylon spacer MSCA

for printed circuitsfor automobiles

Product overview

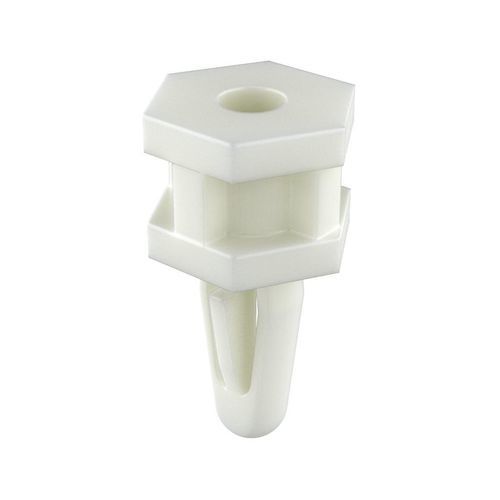

PCB post MSCA is designed to be fixed to a printed circuit board using a metallic self-tapping screw. The part features a releasable clip for fast assembly and removal. The reference holes are not threaded; if you require a threaded variant, see the MSPAA family.

Options

• Available in dyed colors on request

Compliance and properties

• UL94: V2
• RoHS: compliant
• IP rating: not specified
• Measures expressed in: millimeters

Multimedia

• Product video available
• 2D drawing (PDF) and product render available

Technical data (values in mm unless indicated)

• Reference | L | Hole size | Panel thickness | Self-threading thread (d) | D | H / h | A / C | N
• 00100900001 | 6.35 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 5.28
• 00100900002 | 9.53 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26
• 00100900003 | 12.80 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26
• 00100900004 | 15.88 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.15
• 00100900005 | 19.05 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26
• 00100900006 | 22.23 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.15
• 00100900007 | 25.40 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26
• 00100900008 | 28.58 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 7.94
• 00100900009 | 31.75 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26
• 00100900010 | 35.71 | 3.96 | 1.59 | M4 | 7.92 | 10.16 / 1.57 | 4.60 / 2.60 | 8.26

Characteristics / technical specifications

• Model: MSCA
• Application: PCB post designed to be fixed with a metallic self-tapping screw (hole not threaded)
• Compatible self-tapping screw: M4
• Material flammability rating: UL94 V2
• RoHS: compliant
• Units for measures: millimeters
• Available references: 00100900001 to 00100900010 (various lengths L)
• Multimedia: product render, technical drawing and product video available
