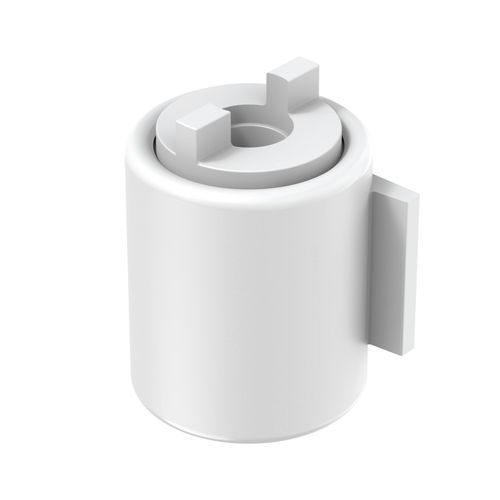

Rotary damper TQD

hydraulicfor the automotive industrybarrel

Description
Barrel dampers TQD provide controlled rotational damping for lids, doors and panels. They are available in a range of torque ratings and are commonly used to control opening stroke and radial movements; they can also be applied in timing devices. The sloping fin version eases installation where clearance or angled mounting is required.

Documentation & Media
Drawing PDF: available
Video: available
Measures expressed in: Millimeters

Variants / Table
Reference | D | L | T | H | A | C
50004000008 | 13,00 | 16,00 | 1,50 | 2,00 | 1,16 | 1,00

Characteristics / Technical specifications

• Model: TQD
• Reference: 50004000008
• RoHS: compliant
• UL94: not specified
• IP: not specified
• Dimensions units: millimeters
