PCB standoff MCC

stackablefor the automotive industry

Description

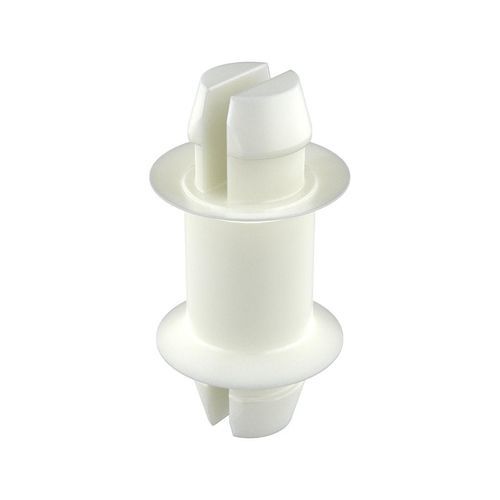

The MCC PCB post and spacer is a combined post/standoff designed to mount printed circuit boards on metal chassis or to enable stacking of multiple PCB tiers while providing electrical insulation. Washers fitted on both ends secure the board, improving assembly stability and pull-out strength.

Additional information

• Possible to get dyed colors
• Drawing: available as PDF (2D drawings)
• UL94: V2
• IP: none / not specified
• RoHS: compliant
• Measures expressed in: millimeters
• Video demonstration available

Table of references
Reference; L; Hole size; Panel thickness; D1; D; A; H; G; More Info
00100900169; 3,18; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900156; 3,18; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900431; 5,84; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900170; 6,35; 3,18; 1,60; 3,96; 5,84; 3,58; 3,56; 0,76
00100900157; 6,35; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900158; 6,60; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900432; 7,00; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900171; 7,92; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900159; 7,92; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900172; 9,53; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900160; 9,70; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900173; 11,11; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900161; 11,11; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900433; 12,00; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900174; 12,70; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900162; 12,70; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900175; 15,88; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900163; 15,88; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900429; 18,29; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900176; 19,05; 3,18; 1,60; 3,96; 5,84; 3,58; 3,56; 0,76
00100900164; 19,05; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900165; 20,02; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900430; 20,83; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900177; 22,23; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900166; 22,23; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900178; 24,13; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900179; 25,40; 3,18; 1,60; 3,86; 5,84; 3,58; 3,56; 0,76
00100900167; 25,40; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76
00100900168; 31,75; 3,96; 1,60; 4,75; 7,14; 4,37; 3,56; 0,76

Technical specifications

• Function: post and spacer for PCB mounting and stacking; eliminates use of screws, nuts and lock washers
• Provides insulated connection between PCB and metal chassis
• Washers on both ends improve stability, assembly integrity and pull-out strength
• UL94 classification: V2
• RoHS: compliant
• IP: not specified (no IP protection indicated)
• Measures unit: millimeters
• Available variants: multiple reference sizes (see table above)
• Possible to obtain dyed colors
