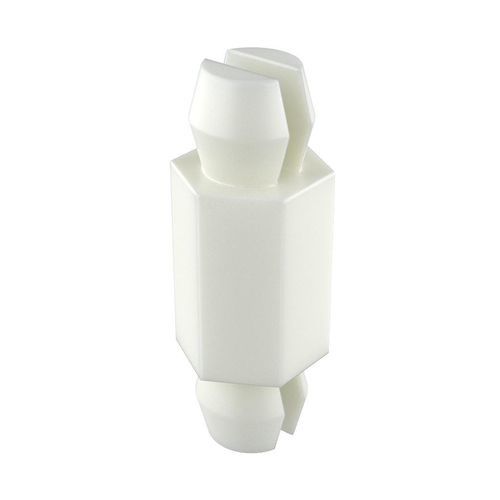

Plastic spacer MEH

for printed circuitsfor automobileshexagonal

Product descriptionLocking hexagonal PCB post and spacer designed to mount printed circuit boards on metal chassis or to stack PCBs in multiple tiers. The component replaces screws, nuts and lock washers while providing electrical insulation between board and chassis. Its integrated locking clips create a mechanically secure, reusable fit in predrilled holes, reducing assembly time and improving repeatability.

Options

• Possible to get dyed colors

Compliance

• UL94: V2
• RoHS: compliant
• IP rating: none specified

Documentation & multimediaDrawing PDF available. Video available.

References tableReference | Hole size | Panel thickness | L | D | H | A
00101100201 | 3,86 mm | 1,60 mm | 7,01 mm | 4,76 mm | 3,56 mm | 4,08 mm

Technical specifications

• Reference: 00101100201
• Hole size: 3,86 mm
• Panel thickness: 1,60 mm
• L: 7,01 mm
• D: 4,76 mm
• H: 3,56 mm
• A: 4,08 mm
• Measures expressed in: Millimeters
• Material compliance: RoHS
• Flammability: UL94 V2
