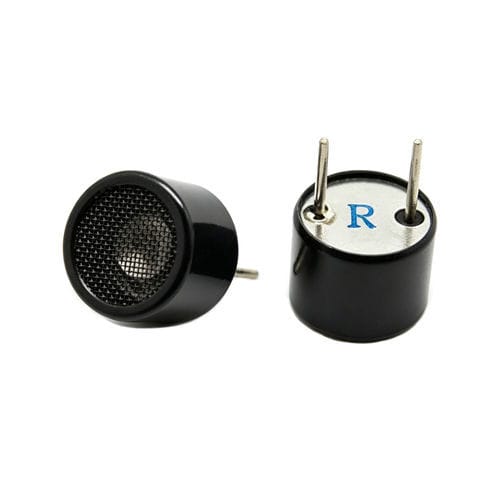

Cylindrical ultrasonic transducer TA004012T-R

piezoelectricfor level measurementproximity

Product Overview
The TA004012T-R 40 kHz ultrasonic transducer series is designed for distance measurement and general sensing in industrial applications. The open-structure design supports both transmitter and receiver functions and is suitable for proximity detection, level sensing and obstacle detection in automation and measurement systems.

Key Features

• Center resonant frequency: 40 kHz ± 1.0 kHz
• Size (diameter × height): Ø12×10 mm
• Capacitance: 2400 pF ± 20%
• Function: Transmitter / Receiver
• Construction: Open structure type
• Sound pressure level: 112 dB minimum
• Sensitivity: -70 dB minimum

Specifications Summary

• Model: TA004012 Series
• Center resonant frequency: 40 kHz ± 1.0 kHz
• Size (diameter × height): Ø12×10 mm
• Capacitance: 2400 pF ± 20%
• Function: Transmitter / Receiver
• Construction: Open structure type
• Sound pressure level: 112 dB minimum
• Sensitivity: -70 dB minimum

Technical specifications

• Model: TA004012 Series
• Center resonant frequency: 40 kHz ± 1.0 kHz
• Size (diameter × height): Φ12×10 mm
• Capacitance: 2400 pF ± 20%
• Function: Transmitter / Receiver
• Construction: Open structure type
• Sound pressure level: 112 dB minimum
• Sensitivity: -70 dB minimum
