Product overview

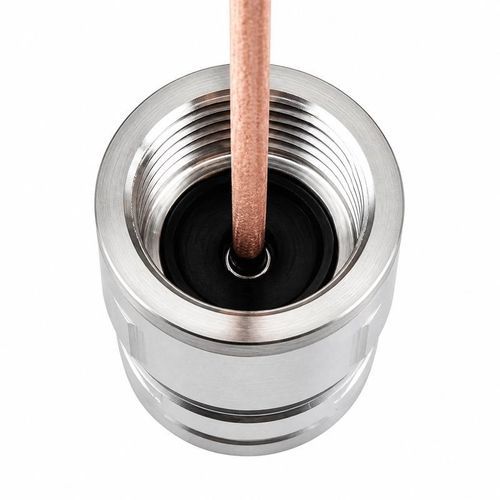

The BBFM-Q1P1M is an ultrasonic flow transducer designed for measuring flue-gas flow and transit time in high-temperature industrial gases. It is intended for installation on boiler exhausts, industrial emission ducts and similar ducts where elevated gas temperatures and pressures occur.

Technical specifications

• Model: BBFM-Q1P1M
• Center frequency: 1.1 MHz ±5%
• Minimum impedance: 150 Ω ±20%
• Capacitance: 1,200 pF ±20% at 1 kHz
• Operating voltage: Peak voltage <300 Vpp
• Operating temperature: -40 to +80°C
• Pressure rating: ≤10 kgf or 1 MPa
• Half-power beam angle (-3 dB): 6.7° ±10%
• Housing material: 316 stainless steel
• Protection rating: IP68

Applications

• Flue-gas flow measurement
• Boiler exhaust monitoring
• Industrial emission ducts
• High-temperature gas transit-time measurement

Selection and integration
Select the transducer based on gas composition and temperature, required acoustic path length, duct geometry and available installation space. Verify compatibility with operating pressure and ingress protection needs, and ensure drive/receive electronics match the transducer's impedance and voltage requirements. Consider mounting arrangement and coupling medium for reliable ultrasonic transmission.
