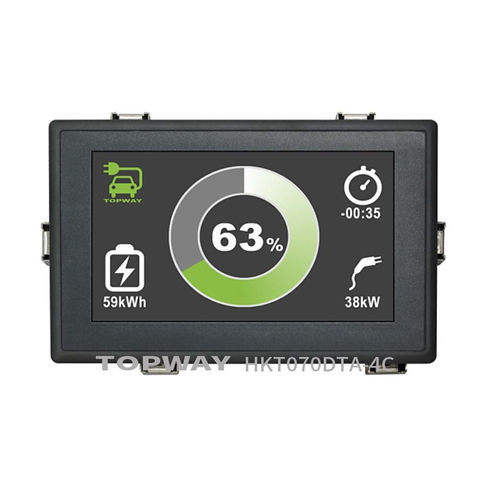

LCD display module HKT070DTA-4C

resistive touch screencolor800 x 480

A 7.0-inch Smart LCD display module from Topway for embedded and outdoor applications, featuring RS232 communication and 800 × 480 resolution. Model HKT070DTA-4C is designed for industrial environments with IP65 protection and extended temperature range.

Features

• IP65 waterproof and dustproof bezel with anti-UV coating, suitable for outdoor use
• Wide operating voltage range for varied power environments
• Wide operating temperature range: -35°C to 70°C for harsh conditions
• Upgradeable firmware via PC download or USB OTG (U disk)
• Smart LCD Module development tool: SGTools for rapid configuration and debugging
• Resistive Touch Panel (RTP) for reliable touch input

Technical specifications

• Model: HKT070DTA-4C
• Size: 7.0-inch
• Resolution: 800 × 480
• Interface: RS232
• Voltage: 12V
• Operating temperature: -35°C ~ 70°C
• Outline (overall dimensions): 200 mm × 125 mm × 30 mm
• Active area (A.A.): 154.08 mm × 85.92 mm
• Protocol / Software: Topway
• Touch screen: RTP (Resistive Touch Panel)
• Wide viewing angle: No

Key specifications / summary

• Display size: 7.0-inch
• Resolution: 800 × 480 pixels
• Communication: RS232
• Power supply: 12V
• Operating temperature range: -35°C to 70°C
• Dimensions (L × W × H): 200 mm × 125 mm × 30 mm
• Active area: 154.08 mm × 85.92 mm
• Touch type: RTP (resistive)
• Protection: IP65 bezel with anti-UV, suitable for outdoor applications
• Firmware upgrade: PC download and USB OTG
• Development support: SGTools
