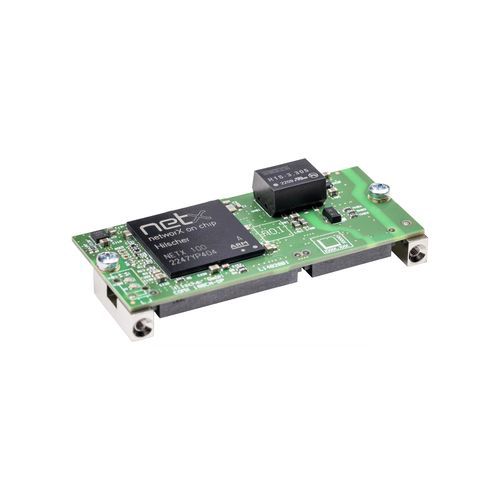

USB communication module COMX 100CN-DP

RS-485PROFIBUS-DPEthernet

Overview
The COMX 100CN-DP communication module is designed for integration into automation equipment to provide drives, robot controllers and PLCs with a PROFIBUS network interface. Communication tasks are executed autonomously on the module, independent of the host processor.

Key features

• Universal PROFIBUS DP / PROFIBUS-MPI interface (Master or Slave)
• Flexible positioning of the network connector
• Same hardware usable as Master or Slave (firmware/license dependent)
• Ready-to-use with preloaded firmware
• Host connection via Parallel Dual‑Port‑Memory (DPM) or fast 50 MHz SPI

Product details
Process data is exchanged via a Dual‑Port‑Memory accessed by an 8/16‑bit parallel bus interface or a 50 MHz SPI interface. COMX modules support leading real-time/fieldbus protocols as Master or Slave. Some variants include two Ethernet ports to support line topologies. Protocol changes are performed by loading the appropriate firmware and, for masters, applying a software license. A 10‑year delivery guarantee is provided thanks to the Hilscher netX network controller.

Supported protocols

• PROFIBUS MPI
• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical data (summary)
COMX 100CN-DP — Part number: 1532.410
Brief description: Communication module PROFIBUS
Communication controller: netX (netX 100)
Integrated memory: RAM: 8 MB SDRAM; FLASH: 4 MB serial Flash
Power supply: +3.3 V DC ±5 %; Typical/current: approx. 430 mA / 460 mA; Typical power: approx. 1.5–1.6 W
System interface: Parallel Dual‑Port‑Memory (50‑pin SMT connector, socket, 1.27 mm pitch)
Communication interface: PROFIBUS (RS‑485, potential‑free; 30‑pin SMT connector, 1.27 mm pitch)
Diagnostics: UART or USB signal available at host interface if integrated
LEDs: SYS (RUN/RDY), COM (STA/ERR)
Environment: Operating temp: -20 °C … +70 °C; Storage: -40 °C … +85 °C; Humidity: 10 % … 95 % RH (non‑condensing)
Device: Dimensions (L×W×H): 70 × 30 × 21.5 mm; Weight: approx. 35–40 g; Mounting: screwable metal bolts per comX Design Guide

Characteristics / technical specifications

• Model: COMX 100CN-DP
• Part number: 1532.410
• Controller: netX 100 (Hilscher)
• RAM: 8 MB SDRAM
• Flash: 4 MB serial Flash
• Dual‑Port‑Memory size: 16 KByte (8/16 bit)
• Host connector: 50‑pin SMT, 1.27 mm
• PROFIBUS connector: 30‑pin SMT, RS‑485, potential‑free
• Supply voltage: +3.3 V DC ±5 %
• Typical current: ~430 mA (typ) / 460 mA (max) at 3.3 V
• Typical power: ~1.5–1.6 W
• Operating temperature: -20 °C to +70 °C
• Dimensions: 70 × 30 × 21.5 mm; Weight ≈ 35–40 g
• Configuration software: SYCON.net
• Compliance: RoHS, CE, UKCA; EMC: EN 61000 series
