Evaluation board NRPEB 51-RE

Overview

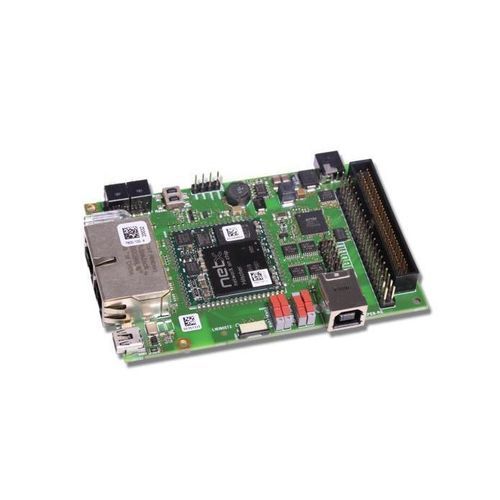

The netRAPID 51 Evaluation Board (NRPEB 51-RE) is an evaluation platform for Real-Time Ethernet applications equipped with NRP 51-RE chip carriers. The compact 32 x 32 mm netX chip carrier is designed for direct soldering to the host system (manual or SMD production). The board provides Real-Time Ethernet communication, an integrated web server and an additional transparent Ethernet channel for host-processor based IT solutions. Applications can use the internal TCP/IP stack via a socket interface or access the netRAPID Ethernet MAC via a raw Ethernet interface.

Highlights

• Simple evaluation of netRAPID technology
• Includes a limited firmware version for Real‑Time Ethernet slave evaluation
• Includes 3 × NRP 51-RE chip carriers for initial prototyping
• Includes evaluation tools and documentation

IoT & communication features
netRAPID 51-RE integrates IoT capabilities including an OPC UA server and an MQTT client. For extended communication tasks the module includes SQI Flash, the netX multi-protocol chip and additional SDRAM. Ethernet transformers, network connectors, LEDs and address switches must be provided on the customer PCB.

Protocols supported

• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information
Product name | Part number | Brief description
NRPEB 51-RE | 7600.100 | netRAPID 51 Evaluation Board - Real-Time Ethernet

Characteristics / Technical specifications

• Board type: netRAPID 51 Evaluation Board (equipped with NRP 51-RE)
• Chip carrier dimensions: 32 x 32 mm (stamp-sized)
• Includes: 3 × NRP 51-RE chip carriers for initial prototypes
• On-module components: netX multi-protocol chip, SQI Flash, additional SDRAM
• Communication: Real-Time Ethernet slave, integrated web server, transparent Ethernet channel
• IoT: integrated OPC UA server, MQTT client
• Host access: internal TCP/IP via socket or raw Ethernet via Ethernet-MAC
• Customer PCB requirements: Ethernet transformers, network connectors, LEDs, address switches
• Firmware: limited evaluation firmware included; full functionality requires licensed firmware loaded during manufacturing
• Part number: 7600.100
• Product status: End of life
