USB interface module NJ 52D-DPS

D-SubRS-485bus

Product overview

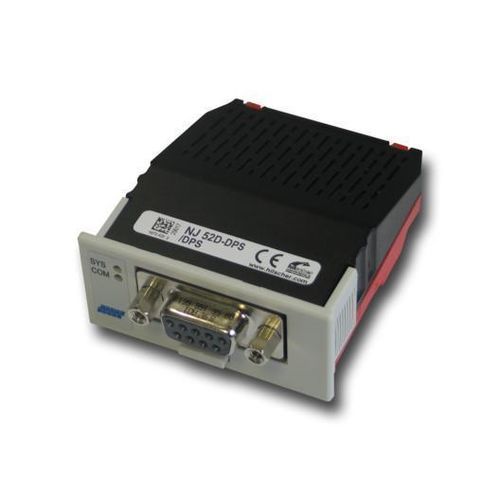

The PCI Express exchangeable module netJACK NJ 52D-DPS provides a universal PROFIBUS DP Slave interface for embedded systems. It supports host connection via parallel dual-port memory or high-speed serial SPI and integrates the netX 52 communication controller with 8 MB SDRAM and 4 MB serial Flash. The closed IP40 housing is designed for tool-free plug-in installation into the carrier board, enabling mounting before shipment or later by the end customer. Hilscher offers design and production services for customer-specific requirements and a 10-year delivery guarantee based on the netX controller.

Highlights

• Universal PROFIBUS DP Slave interface in the closed IP40 housing
• Host connection via dual-port memory or SPI
• Simple plug-in installation without tools
• No additional components required for mounting and connecting to the carrier board
• Function-compatible substitute for NJ 10D-DPS

Protocols

• PROFIBUS DP Slave

Technical specifications

• Part number: 1672.420
• Brief description: Exchangeable module SPI - PROFIBUS DP Slave
• Communication controller: netX 52
• Integrated memory - RAM: 8 MB SDRAM
• Integrated memory - FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V ± 5 % DC
• Typical/maximum current: 375 mA / 450 mA
• Typical power consumption: 1.32 W
• System interface: Parallel or serial Dual-Port Memory
• Connector type (host): 60 pin connector (SAMTEC FSI-130-03-G-D-AB)
• Pin distance / pin width: 0.45 mm / 0.55 mm
• Dual-port-memory size: 64 KByte (16 address lines), where 8 KByte used by firmware (13 address lines, lowest 8 KByte)
• Width for data access to DPM: 8/16 bit
• Serial dual-port memory interface: SPI Slave, mode 3
• SPI Baud rate: Max. 50 MHz
• Communication standard (protocol): PROFIBUS DP Slave
• Communication interface type (bus): RS-485, potential-free
• Field connector: D-Sub socket, 9-pin
• Diagnostic interface: Type USB or UART (signal at host interface; available only if integrated in host system)
• Display - SYS (System Status): green: RUN, yellow: RDY
• Display - COM (Communication status): green: STA, red: ERR
• Ambient temperature range for operation: -25 °C … +70 °C
• Ambient temperature range for storage: -40 °C … +85 °C
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): Length: 68.2 mm / 60 mm (with / without DSUB socket), Width: 53.4 mm (at front panel) / 50.4 mm (body), Height : 25.2 mm (at front panel) / 19.2 mm (body)
• Weight: approx. 64 g
• Housing: Closed module
• Protection class: IP40
• Mounting / Installation: Via milled footprint holes in the carrier board and retaining brackets. No mounting accessories required.
• Mounting/pulling cycles: max. 10
• Configuration software: SYCON.net
• Conformity - RoHS: yes
• Conformity - Reach: yes
• UL certification - UL type: cURus
• UL file: E334100
• Conformance with EMC directives - CE sign: yes
• Conformance with EMC directives - UKCA sign: yes
• Emission: EN 55011 / BS EN 55011
• Immunity: EN 61131-2 / BS EN 61131-2
• Tests - Shock: EN60068-2-27 Ea
• Tests - Vibration: EN60068-2-6 Fc
