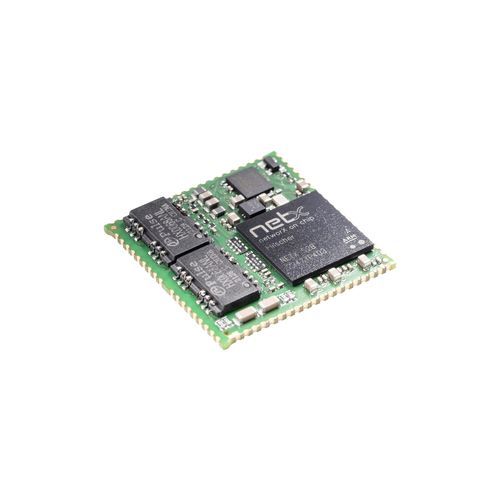

netX 52 Chip Carrier NRP 52-RE incl. transformer - Real-Time Ethernet slave

Summary
The netRAPID NRP 52-RE is a ready-to-solder, stamp-format netX 52 chip carrier (32 x 32 mm) designed for Real-Time Ethernet slave applications. It includes required components: integrated Ethernet transformers, SQI Flash and the netX multi-protocol chip, and is intended for direct soldering to the host system (manual or SMD process). The protocol stack executes in the netX internal RAM; application development is limited to using the netRAPID API.

Highlights

• Complete Real-Time Ethernet slave interface in a minimal footprint
• Integrated transformers to save PCB area
• Host connection via dual-port memory or SPI
• Single hardware platform for multiple Real-Time Ethernet systems

Detailed description
The compact, stamp-sized (32 x 32 mm) netX chip carrier reduces integration risk and development effort. Host-side hardware requires only network connectors, LEDs and address switches; a simple 2-layer PCB is sufficient. The device is supplied ready-to-solder and supports manual soldering or SMD production. To enable the full feature set of netRAPID, licensed firmware must be purchased once and loaded during manufacturing.

Supported protocols

• CC-Link IE Field Basic Slave
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information (excerpt)
Product name | Part number | Brief description
NRP 52-RE | 767x.100 | netX 52 Chip Carrier incl. transformer - Real-Time Ethernet slave

Downloads

• netRAPID Datasheet (EN)

Technical specifications

• Model: NRP 52-RE
• Form factor: stamp format, ready-to-solder (approx. 32 x 32 mm)
• Included components: netX multi-protocol chip, integrated Ethernet transformers, SQI Flash
• Host interfaces: dual-port memory or SPI
• Protocol stack execution: internal RAM of netX
• Application focus: Real-Time Ethernet slave
• Host PCB: simple 2-layer PCB sufficient
• Mounting: ready-to-solder, suitable for manual soldering or SMD production
• Firmware: Licensed netRAPID firmware must be purchased once and loaded during manufacturing
• Ordering part number (example): 767x.100
