EtherCAT communication module NRP 51-RE

CC-LinkProfiNetEthernet

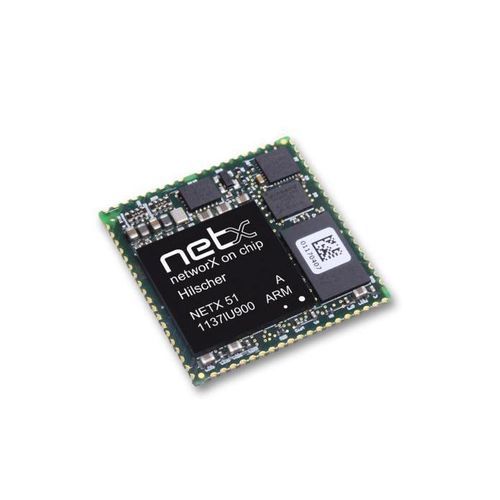

Product The netRAPID 51-RE is a compact netX Chip Carrier in stamp format (approx. 32 x 32 mm) delivered as a ready-to-solder module providing Real-Time Ethernet slave functionality with an additional memory for extended application tasks.

Highlights

• Compact slave interface without transformer
• Increased on-module memory capacity (additional SDRAM)
• Host connection via dual-port memory or SPI
• One hardware for multiple Real-Time Ethernet systems

Overview The module offers a cost-efficient, low-integration-risk solution that can be soldered to the host PCB by hand or in an SMD production process. It integrates a Real-Time Ethernet interface, an embedded web server and an extra transparent Ethernet channel to offload IT/IoT functions to the host processor while maintaining deterministic real-time communication.

Communication & IoT features netRAPID 51-RE supports Real-Time Ethernet protocols and provides an additional transparent Ethernet channel for customer IT applications. Applications can use the internal TCP/IP stack via a socket interface or access the Ethernet MAC directly via a raw Ethernet interface. Integrated IoT functionality includes an OPC UA server and an MQTT client.

Memory & components The module contains a netX multi-protocol chip, SQI Flash and additional SDRAM for extended communication and buffering tasks. Ethernet transformers, network connectors, LEDs and address switches are not present on the carrier and must be provided on the customer PCB. A licensed firmware is required to enable full netRAPID functionality and must be loaded during manufacturing.

Supported protocols

• CC-Link IE Field Basic Slave
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information (table) Product name | Part number | Brief description
NRP 51-RE (TRAY) | 7662.100 | netX 51 Chip Carrier with an additional memory - Real-Time Ethernet slave

Technical specifications

• Form factor: stamp format, approx. 32 x 32 mm
• Ready-to-solder netX design (solderable by hand or SMD process)
• Real-Time Ethernet slave functionality with integrated web server
• Additional transparent Ethernet channel for host-based IT applications
• Host interfaces: dual-port memory or SPI
• On-module components: netX multi-protocol chip, SQI Flash, additional SDRAM
• External components required on PCB: Ethernet transformers, network connectors, LEDs, address switches
• Built-in IoT: integrated OPC UA server and MQTT client
• Access to TCP/IP: socket interface or raw Ethernet MAC interface
• Licensed firmware: required to unlock full netRAPID functions (to be loaded during manufacturing)
• Lifecycle status: End of life
