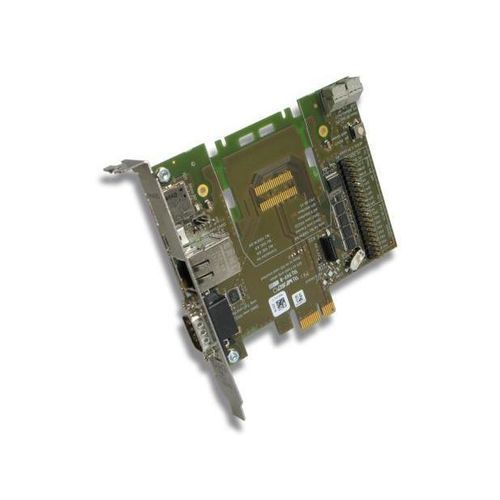

PCI Express interface board NJEB-E

Modbus TCPindustrial

Description
The PCI Express Exchangeable Module. The universal exchangeable module netJACK with its PCI Express interface is designed for the embedded market and high-performance CPUs (e.g. Intel Atom®). Alternative netJACK variants offer a traditional dual-port memory or a high-speed SPI interface. All variants use a compact closed IP40 design and can be mounted without tools. Connector and mounting rails are implemented as contact areas or cut-outs on the host system, avoiding additional costs for the exchangeable module. netJACK can be installed quickly, either prior to shipment or later by the end customer.

Highlights

• Simple evaluation of netJACK with PCIe host connection
• Host connection via PCI Express
• One evaluation platform for multiple protocols
• Tool-free plug-in installation
• No additional components required for mounting and carrier board connection

Protocols supported

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• DeviceNet Master
• PROFIBUS DP Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CANopen Slave

Order Information
Product name | Part number | Brief description
NJEB-E | 1600.010 | netJACK Evaluation Board PCI Express

Technical specifications

• Exchangeable module family: netJACK (PCI Express interface)
• Form factor: closed IP40 module, compact design, mountable without tools
• Host interface: PCI Express (host connection via PCIe)
• Alternative interfaces: dual-port memory or high-speed SPI (for alternative netJACK versions)
• Mounting: connector and mounting rails implemented as contact areas/cut-outs on host; no additional mounting components required
• Evaluation purpose: single evaluation platform for multiple protocols
• Supported use cases: drives, HMI systems, identification systems, soft-PLC, visualization, custom applications
• Network controller: Hilscher netX (10-year delivery guarantee)
• Part number (product): 1600.010
• Product lifecycle status: Active
