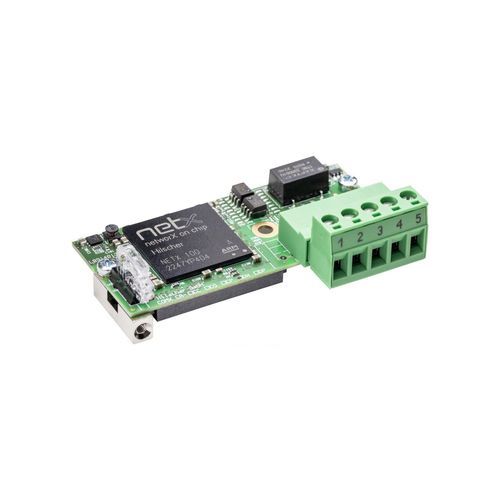

DeviceNet communication module COMX 100CA-DN

PLCprogrammablemicroprocessor-controlled

Description

• Dual-port memory communication module for DeviceNet; flexible communication module for automation.
• Universal DeviceNet interface (Master or Slave) with network connector onboard.
• Master or slave on the same hardware; usable immediately due to preloaded firmware.
• Host connection via Dual-Port-Memory (access via 8-/16-bit bus interface or fast 50 MHz SPI interface).

Product details
The comX communication module is designed to be integrated into automation devices to provide drives, robot controllers, PLCs, etc. with a network interface. Communication tasks are executed autonomously in the module, independent of the target device processor. comX supports leading real-time Ethernet protocols as Master or Slave and meets network-specific requirements in a single module. The communication protocol can be changed by loading the appropriate firmware and a software license for masters. Thanks to the Hilscher network controller netX, a 10-year delivery guarantee is granted.

Highlights

• Universal DeviceNet interface (Master or Slave) with network connector onboard
• Master or slave on the same hardware
• Preloaded firmware — usable immediately
• Host connection via dual-port memory (8/16-bit bus or 50 MHz SPI)

Supported protocols

• DeviceNet Master
• DeviceNet Slave

Technical data (excerpt — table)
COMX 100CA-DN | Parameter | Value
Product – Part number | 1531.510
Product – Brief description | Communication Module DeviceNet
Communication controller | netX – netX 100
Integrated Memory – RAM | 8 MB SDRAM
Integrated Memory – FLASH | 4 MB serial Flash
Power supply – Supply voltage | +3.3 V DC ± 5 %
Power supply – Typical/maximum current | approx. 440 mA / 470 mA (at 3.3 V)
Power supply – Typical power consumption | approx. 1.5 … 1.6 W
Power connector | via system bus connector X1
System interface – Type | Parallel Dual-port memory interface
System interface – Connector | 50-pin SMT connector, socket
System interface – Pin distance | 1.27 mm
System interface – Dual-port memory size | 16 KByte
System interface – Data width | 8/16 bit
Communication interface – Communication standard | DeviceNet
Communication interface – Interface type | ISO-11898, according to DeviceNet specification, potential-free
Communication interface – Connector | COMBICON connector, 5-pin
Diagnostic interface – Type | UART or USB
Diagnostic interface – Connector | Signal at host interface (available only if integrated in host system)
Display – LED display | SYS System Status (green: RUN, yellow: RDY); MNS Module network status (green: MS, red: NS)
Environment – Ambient temperature (operation) | -20 °C … +65 °C (air flow during measurement: 0.5 m/s)
Environment – Ambient temperature (storage) | -40 °C … +85 °C
Environment – Humidity range | 10 % … 95 % relative humidity (non-condensing)
Device – Dimensions (L x W x H) | 70 mm x 30 mm x 21.5 mm
Device – Weight | approx. 35 g … 40 g
Device – Mounting | using screwable metal bolts, according to comX Design Guide
Configuration | Configuration software: SYCON.net
Conformity | RoHS: yes; CE sign: yes; UKCA sign: yes
EMC – Emission | EN 61000-6-4 / BS EN 61000-6-4
EMC – Immunity | EN 61000-6-2 / BS EN 61000-6-2
EMC – ESD (air) | EN 61000-4-2: ± 8 kV, Criterion B
EMC – ESD (contact) | EN 61000-4-2: ± 4 kV, Criterion B
EMC – Burst (communication lines & DeviceNet power) | EN 61000-4-4: ± 2 kV, Criterion B (unshielded)
EMC – Surge (communication & DeviceNet power) | EN 61000-4-5: up to 1 kV (various configurations), Criterion B

Specifications

• Model: COMX 100CA-DN
• Brand: Hilscher
• Part number: 1531.510
• Controller: netX 100
• RAM: 8 MB SDRAM
• Flash: 4 MB serial Flash
• Dual-Port-Memory size: 16 KByte; Data width: 8/16 bit
• Host interfaces: Parallel dual-port memory (50-pin SMT socket), fast 50 MHz SPI or 8/16-bit bus
• Power: +3.3 V DC ±5 %; typ. current ~440 mA; typ. power ~1.5–1.6 W
• DeviceNet interface: ISO-11898 compliant, COMBICON 5-pin connector (potential-free)
• Diagnostics: UART or USB signal at host interface (if integrated)
• LEDs: SYS (RUN/RDY), MNS (MS/NS)
• Operating temperature: -20 °C … +65 °C; Storage: -40 °C … +85 °C
• Humidity: 10–95 % non-condensing
• Dimensions: 70 x 30 x 21.5 mm; Weight: ~35–40 g
• Mounting: screwable metal bolts per comX Design Guide
• Configuration tool: SYCON.net
• Compliance: RoHS, CE, UKCA; EMI/EMC standards and ESD/Burst/Surge specifications per table above
