USB interface module NJ 100DN-DP

D-SubRS-485PROFIBUS DP

Overview

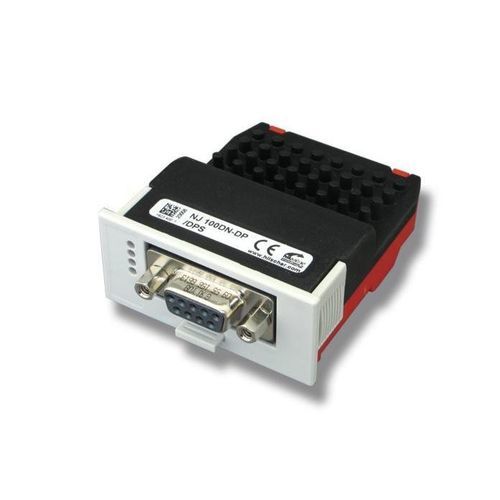

The netJACK exchangeable module NJ 100DN-DP provides PROFIBUS DP master or slave functionality via a parallel dual-port memory interface. Designed for embedded applications, it integrates the netX 100 communication controller in a closed IP40 housing for tool-free plug-in mounting on the carrier board, allowing late installation or easy replacement. Hilscher support and the netX architecture ensure long-term availability and enable customer-specific applications such as soft-PLC or visualization.

Highlights

• Universal PROFIBUS DP interface (Master or Slave) in closed IP40 housing
• Tool-free plug-in installation directly on the carrier board
• Same hardware supports Master or Slave modes
• No additional mounting accessories required
• Host connection via parallel dual-port memory (DPM)

Supported protocols

• PROFIBUS DP Master
• PROFIBUS DP Slave

Technical specifications

• Part number: 1623.400
• Brief description: Exchangeable Module Dual-port memory - PROFIBUS DP
• Communication controller: netX 100
• Integrated memory: 8 MB SDRAM; 4 MB serial Flash EPROM
• Supply voltage: +3.3 V ± 5 % DC
• Typical / maximum current: 434 mA / 500 mA
• Typical power consumption: 1.43 W
• System interface (bus type): Parallel dual-port memory
• Connector type (host): 80 pin connector (SAMTEC FSI-140-03-G-D-AB)
• Pin distance / pin width: 0.45 mm / 0.55 mm
• Dual-port-memory size: 64 KByte (16 address lines), 16 KByte used by firmware
• Data access width to DPM: 8/16 bit
• Communication interface type: RS-485, potential-free
• Field connector: D-Sub socket, 9-pin
• Diagnostic interface type: USB or UART (signal available at host interface only if integrated in host system)
• Display: SYS System Status (green: RUN, yellow: RDY); COM Communication status (green: STA, red: ERR)
• Ambient temperature (operation): -20 °C … +70 °C
• Ambient temperature (storage): -40 °C … +85 °C
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): Length: 68.2 mm / 60 mm (with / without DSUB socket); Width: 53.4 mm (at front panel) / 50.4 mm (body); Height: 25.2 mm (at front panel) / 19.2 mm (body)
• Weight: approx. 68 g
• Housing: Closed module
• Protection class: IP40
• Mounting / Installation: Via milled footprint holes in the carrier board and retaining brackets. No mounting accessories required. Mounting / pulling cycles: max. 10
• Configuration software: SYCON.net
• Conformity: RoHS: yes; REACH: yes
• UL certification: cURus, UL file E334100
• EMC / CE / UKCA: CE sign: yes; UKCA sign: yes
• Emission: EN 55011 / BS EN 55011
• Immunity: EN 61131-2 / BS EN 61131-2
• Tests: Shock: EN60068-2-27 Ea; Vibration: EN60068-2-6 Fc
