Serial communication module NIC 50-DPS

PROFIBUS-DPModbus RTUUART

Product Overview

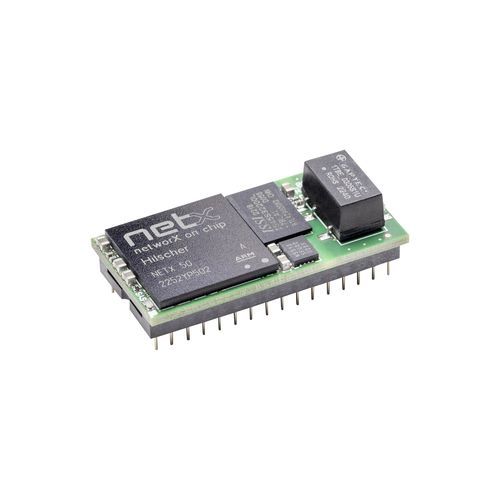

NIC 50-DPS is a compact DIL-32 communication IC designed as a PROFIBUS DP Slave to provide communication for simple slave devices without a host processor. The netIC is a single-chip module based on the Hilscher netX network controller and integrates all components of a fieldbus or real-time Ethernet interface including an integrated 2-port switch and hub. By loading different firmware, a single netIC can support multiple communication systems. Application payload is exchanged with the host via serial interfaces (UART, SPI) using simple read/write commands. The widely used Modbus RTU protocol is available as a serial protocol. Conventional shift registers can be connected as digital I/O via a synchronous serial interface so that simple I/O-only devices do not require a host processor.

Highlights

• Compact DIL-32 communication module for cost-efficient field devices
• Host connection with Modbus RTU via SPI or UART
• PROFIBUS DP Slave interface including bus logic
• Direct I/O-data connection via external shift register
• One design for multiple networks thanks to uniform interfaces and firmware flexibility

Supported Protocols

• Modbus RTU Slave
• Modbus RTU Master
• PROFIBUS DP Slave

Order Information (excerpt)
Product name | Part number | Brief description
NIC 50-DPS | 1541.420/DPS | DIL-32 communication IC - PROFIBUS DP Slave

Notes
The netX technology provides a 10-year delivery guarantee. The netIC uses serial host interfaces (UART, SPI) for low data-throughput devices and supports direct connection to shift registers for simple I/O-only applications. Firmware can be changed to target other fieldbus or real-time Ethernet systems.

Technical specifications

• Form factor: DIL-32 communication IC
• Model: NIC 50-DPS
• Part number: 1541.420/DPS
• Primary host interface: SPI or UART (Modbus RTU)
• Network interface: PROFIBUS DP Slave including bus logic
• Direct I/O: via external synchronous shift register
• Based on: Hilscher netX network controller
• Capabilities: single-chip module with integrated 2-port switch and hub; firmware-changeable for multiple communication systems
• Delivery guarantee: 10 years (netX technology)
