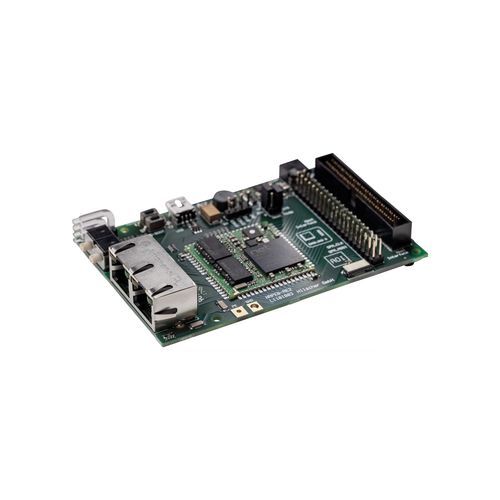

Evaluation board NRPEB 52-RE

Overview
The netRAPID 52 Evaluation Board NRPEB 52-RE provides a fast, secure alternative to a customer-developed Real-Time Ethernet slave interface. The kit centers on a compact 32 x 32 mm netX chip carrier (stamp format) that can be soldered to the host system by hand or with SMD production. Ethernet transformers, SQI Flash and a netX multi-protocol chip are included on the carrier and the Real-Time Ethernet protocol stack executes in the internal RAM of the netX. Host hardware only requires network connectors, LEDs and address switches; a simple 2-layer PCB is sufficient. Application development is based on the netRAPID API. Full product functionality requires a one-time licensed firmware purchase and loading during manufacturing.

Highlights

• Easy evaluation of netRAPID technology
• Includes a limited firmware version for Real-Time Ethernet slave
• Includes 3 chip carriers NRP 52-RE for initial prototypes
• Includes all tools and documentation needed for evaluation
• Single hardware solution for multiple Real-Time Ethernet systems

Supported protocols

• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information
Product name | Part number | Brief description
NRPEB 52-RE | 7600.200 | netRAPID 52 Evaluation Board - Real-Time Ethernet

Technical specifications

• Model: NRPEB 52-RE (netRAPID 52 Evaluation Board)
• Evaluation kit includes: evaluation board, limited Real-Time Ethernet firmware, 3 NRP 52-RE chip carriers, tools and documentation
• Chip carrier (netX stamp) size: 32 x 32 mm
• On-board components: Ethernet transformers, SQI Flash, netX multi-protocol chip
• Protocol stack execution: runs in internal RAM of netX
• Host requirements: network connectors, LEDs, address switches; simple 2-layer PCB sufficient
• Application development: via netRAPID API
• Firmware: full functionality requires purchase and loading of licensed firmware during manufacturing
• Supported Real-Time Ethernet systems: see supported protocols list
• Part number: 7600.200
