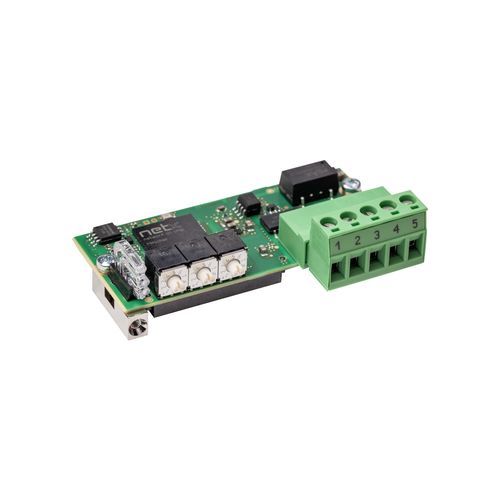

USB communication module COMX 52CA-CCS

serialRS-485CC-Link

Product overview
The comX communication module integrates into automation devices to provide drives, robot controllers and PLCs with a network interface. Communication tasks run autonomously on the module, independent of the host processor.
Process data is exchanged via a dual-port memory (parallel 8/16-bit) or via a high-speed SPI interface (up to 50 MHz).
comX supports leading real-time Ethernet protocols as Master or Slave and allows protocol changes by loading appropriate firmware and licenses. Flexible network connector positioning is supported. A 10-year delivery guarantee is provided by the Hilscher netX network controller.

Highlights

• Universal CC-Link Slave interface with onboard network connector
• Flexible network connector positioning
• Host connection via parallel dual-port memory or SPI
• Function-compatible replacement for comX 10CA-CCS

Supported protocols

• CC-Link Slave

Technical data (summary)
Part number: 1581.740
Brief description: Communication Module CC-Link Slave
Communication controller: netX (netX 52)
Integrated memory: 4 MB serial Flash
Supply voltage: +3.3 V DC ±5 %
Typical/maximum current: 400 mA / 410 mA (at 3.3 V)
Typical power consumption: approx. 1.35 W (at 3.3 V)
Power connector: via system bus connector X1
System interface: Parallel or serial dual-port memory interface
System connector: 50-pin SMT connector, socket (1.27 mm pin pitch)
Dual-port memory size: 16 KByte (lower 8 KByte used by firmware)
Data width: 8/16 bit
Serial dual-port memory interface: SPI Slave, mode 3 (max. 50 MHz)
Communication standard: CC-Link version 2.0 and 1.1 (per CC-Link standard V.2.00 BAP-05025-J)
Interface type: RS-485, potential-free; Connector: 5-pin screw connector (RIACON type 166)
Diagnostic interface: UART or USB (signals available at host interface if integrated)
LED indicators: SYS System Status (green: RUN, yellow: RDY); L RUN / L ERR (green: L RUN, red: L ERR)
Operating elements: 2 rotary switches for network address; 1 rotary switch for baud rate
Ambient temperature (operation): 0 °C … +55 °C (air flow during measurement: 0.5 m/s)
Ambient temperature (storage): -40 °C … +85 °C
Humidity: 10 % … 95 % RH (non-condensing)
Altitude: 0 … 2000 m
Dimensions (L x W x H): 70 mm x 30 mm x 21.5 mm
Weight: approx. 35 g … 40 g
Mounting: using screwable metal bolts, according to comX Design Guide
Configuration software: SYCON.net
Conformity: RoHS: yes; CE: yes; UKCA: yes
EMC (emission): EN 61000-6-4 / BS EN 61000-6-4
EMC (immunity): EN 61000-6-2 / BS EN 61000-6-2
ESD (EN 61000-4-2, contact): ±6 kV, Criterion A
Burst (EN 61000-4-4): ±2.2 kV, Criterion A (communication lines, shielded)
Surge (EN 61000-4-5): 1 kV, Criterion A (communication lines, shielded)

Technical specifications

• Model: COMX 52CA-CCS
• Part number: 1581.740
• Function: Communication module SPI - CC-Link Slave
• Controller: netX 52
• Flash memory: 4 MB serial Flash
• Dual-port memory: 16 KByte (lower 8 KByte used by firmware)
• Host interfaces: Parallel dual-port memory or SPI (SPI Slave mode 3, up to 50 MHz)
• Connector to host: 50-pin SMT socket, 1.27 mm pitch
• Network interface: RS-485 (potential-free), 5-pin screw connector
• Supply voltage: 3.3 V DC ±5 %; typical current 400 mA
• Power consumption: approx. 1.35 W (at 3.3 V)
• LEDs: SYS (RUN/RDY), L RUN/L ERR
• Address/Baud selection: rotary switches (2 for address, 1 for baud)
• Operating temperature: 0 °C to +55 °C
• Storage temperature: -40 °C to +85 °C
• Humidity: 10–95 % RH non-condensing
• Dimensions: 70 x 30 x 21.5 mm; Weight ~35–40 g
• Mounting: screwable metal bolts per comX Design Guide
• Configuration software: SYCON.net
• Standards / conformity: RoHS, CE, UKCA; EMC emission EN 61000-6-4; immunity EN 61000-6-2
