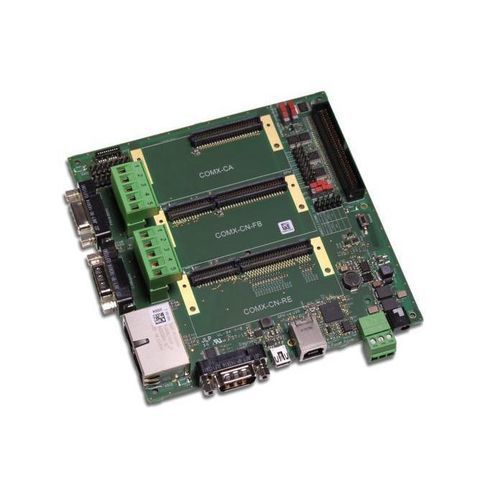

Evaluation board COMXEB

Overview
COMXEB — development and evaluation platform for comX communication modules. Designed for testing, integration and diagnosis of comX modules in stand-alone mode or connected to a host system.

Highlights

• Stand-alone operation independent of a PC
• Compatible with all comX module variants
• Compatible with the Hilscher tool chain
• Host connection via dual-port memory or SPI
• Diagnosis and console access via UART or USB

Order information
Product name | Part number | Brief description
COMXEB | 1530.000 | comX Evaluation Board

Available downloads (selection)

• Embedded Modules (Infosheet)
• Compact Communication Modules (Datasheet)
• comX EB (Datasheet)
• COMX Communication Modules (Design Guide)
• COMX Communication Modules (User Manual)

Characteristics / technical specifications

• Product type: Evaluation board for comX communication modules
• Model / designation: COMXEB
• Part number: 1530.000
• Operation: Stand-alone (usable independently of a PC)
• Supported modules: Usable for all comX types (multi-protocol support provided by the selected comX module)
• Host interfaces: Dual-port memory or SPI
• Diagnosis interfaces: UART interface or USB interface
• Toolchain compatibility: Compatible with Hilscher tool chain
• Supported communication ecosystems (via comX modules): examples include PROFINET, EtherCAT, EtherNet/IP, Sercos, PROFIBUS, CANopen, DeviceNet, OPC UA, MQTT (protocol support provided by selected comX module)
• Lifecycle status on page: Active
