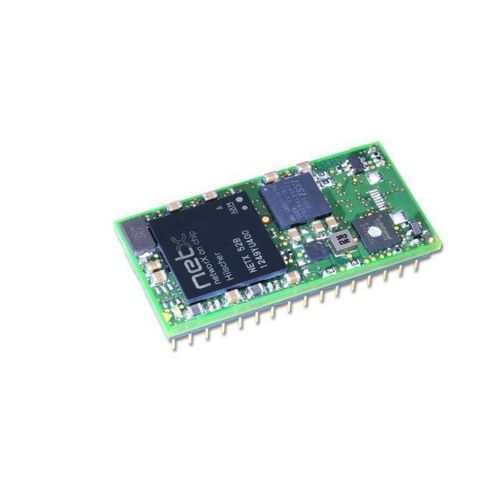

Fieldbus communication module NIC 52-REFO

ProfiNetModbus RTUEthernet

Product headline
DIL-32 communication IC for fiber optic cable - PROFINET IO-Device

Subheadline
Compact netIC solution for simple slave field devices with fiber-optic connectivity and serial host interfaces (UART, SPI).

Overview
NIC 52-REFO is a compact DIL-32 single-chip communication module (netIC) designed for simple field devices such as barcode readers, identification systems, valve manifolds and I/O blocks that require connection to a fieldbus or Real-Time Ethernet system via fiber optic cable. The netIC integrates a complete network controller (netX 52), including an integrated 2-port switch and hub, and provides serial host interfaces (UART, SPI) for low data-throughput applications. One hardware design supports multiple communication systems by loading different firmware. Direct I/O data exchange is possible via an external shift register, enabling very simple devices to operate without a dedicated host processor. The product benefits from a 10-year delivery guarantee based on netX technology.

Highlights

• Compact Real-Time Ethernet slave module based on netX 52
• Host connection via Modbus RTU over SPI or UART
• Reduced height and improved performance under high network load
• Direct I/O-data connection via external shift register (synchronous serial)
• One hardware design for multiple networks through uniform interfaces and firmware
• Firmware update via integrated web server

Description
Simple field devices with low data throughput use serial host interfaces (UART, SPI) to communicate with the netIC. The NIC 52-REFO is a full single-chip solution in DIL-32 format based on the netX 52 network controller. It contains all necessary components for fieldbus and Real-Time Ethernet connectivity, including a 2-port switch and hub. Different communication systems are supported by loading the appropriate firmware. Application payload is exchanged using simple read/write commands over the serial interfaces; Modbus RTU is implemented as a serial protocol. Control of conventional shift registers via a synchronous serial interface allows basic digital I/O without an additional host processor. A 10-year delivery guarantee applies due to the underlying netX platform.

Supported protocols

• Modbus RTU Slave
• Modbus RTU Master
• PROFINET IO-Device

Order information (table)
Product name | Part number | Brief description
NIC 52-REFO | 1544.110/PNS | DIL-32 communication IC for fiber optic cable - PROFINET IO-Device

Technical specifications

• Form factor: DIL-32 communication IC (single-chip netIC)
• Network controller: netX 52 technology
• Intended application: slave solution for simple field devices with low data throughput
• Host interfaces: UART, SPI (Modbus RTU via serial interface)
• I/O connection: direct I/O-data connection via external shift register (synchronous serial)
• On-board components: integrated 2-port switch and hub
• Firmware: updatable via integrated web server; single hardware supports multiple networks via firmware
• Delivery guarantee: 10-year delivery guarantee (netX-based)
• Part number: 1544.110/PNS
• Product lifecycle: End of life
