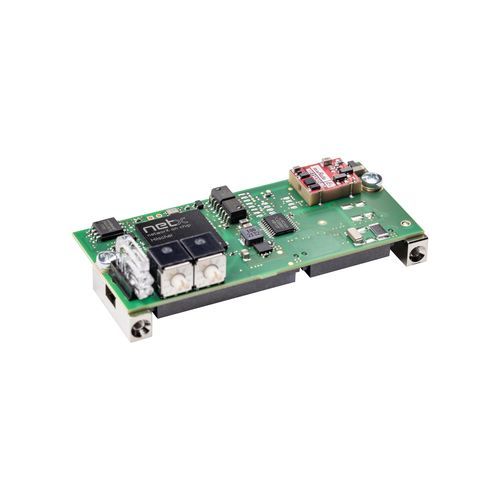

USB communication module COMX 52CN-COS

serialCANopenCAN Bus

Overview
The COMX 52CN-COS is a compact communication module for integration into automation equipment to provide a CANopen Slave network interface. The module executes communication tasks autonomously, independent of the host processor, and exchanges process data via a dual-port memory or a high-speed 50 MHz SPI interface. Firmware can be changed to support different network protocols; master operation requires a license. The module is based on the netX 52 network controller providing long-term availability.

Highlights

• Universal CANopen Slave interface with network connection to the mainboard
• Flexible positioning of the network connector for installation convenience
• Host connection via parallel/serial dual-port memory or SPI Slave (mode 3)
• Function-compatible substitute for comX 10CN-COS

Protocol support

• CANopen Slave

Technical specifications

• Part number: 1582.540
• Brief description: Communication Module CANopen Slave
• Communication controller: netX 52
• Integrated memory: 4 MB serial Flash
• Supply voltage: +3.3 V DC ± 5 %
• Typical / maximum current: 380 mA / 400 mA (at 3.3 V)
• Typical power consumption: approx. 1.3 W (at 3.3 V)
• Power connector: via system bus connector X1
• System interface: Parallel or serial dual-port memory interface
• System interface connector: 50-pin SMT connector, socket
• Pin distance: 1.27 mm
• Dual-port memory size: 16 KByte (lower 8 KByte used by firmware)
• Data width: 8/16 bit
• Serial dual-port memory interface: SPI Slave, mode 3
• SPI baud rate: max. 50 MHz
• Communication standard: CANopen Slave
• CAN interface type: ISO-11898, potential-free
• CAN connector: 30-pin SMT connector, socket, grid distance 1.27 mm, matching plug type SAMTEC TFM-115-02-S-D–A
• Diagnostic interface: UART or USB (signal at host interface, available only if integrated in host system)
• Display: LED display; SYS System Status (green: RUN, yellow: RDY), CAN Communication status (green: STA, red: ERR)
• Operating elements: Network address via 2 rotary switches
• Ambient temperature range for operation: -20 °C … +70 °C (air flow during measurement: 0.5 m/s)
• Ambient temperature range for storage: -40 °C … +85 °C
• Humidity range: 10 % … 95 % relative humidity (non-condensing)
• Altitude: 0 … 2000 m
• Dimensions (L x W x H): 70 mm x 30 mm x 21.5 mm
• Weight: approx. 35 g ... 40 g
• Mounting: using screwable metal bolts, according to comX Design Guide
• Configuration software: SYCON.net
• Conformity: RoHS: yes
• Conformance with EMC directives: CE sign: yes; UKCA sign: yes
• EMC Emission: EN 61000-6-4 / BS EN 61000-6-4
• EMC Immunity: EN 61000-6-2 / BS EN 61000-6-2
• Electrostatic discharge (ESD) according to EN 61000-4-2 (Contact discharge): ± 6 kV, Criterion A
• Fast transient interferences (Burst) according to EN 61000-4-4: ± 2 kV, Criterion A (communication lines, shielded)
• Surge voltage according to EN 61000-4-5 (communication and data lines): 1 kV, Criterion A (communication lines, shielded)
