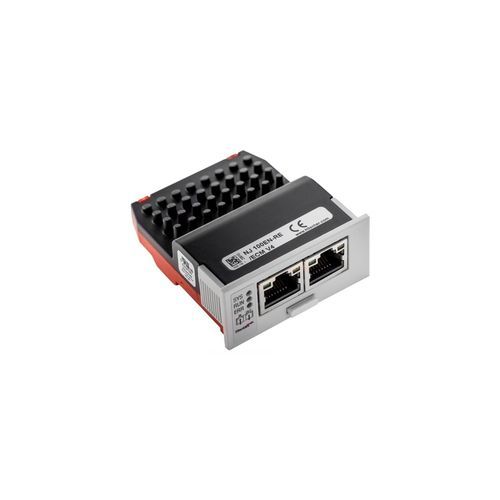

USB interface module NJ 100EN-RE

EthernetModbusPCI

Product overview
The NJ 100EN-RE is an exchangeable PCI Express module (netJACK) by Hilscher that provides a universal Real-Time Ethernet interface for embedded systems. Fitted with the netX 100 communication controller, it supports deployment with high-performance CPUs (e.g. Intel Atom®) and is available in variants with dual-port memory or a fast serial SPI interface. The module features a compact closed IP40 housing and tool-free plug-in mounting, enabling integration on carrier boards without additional mounting accessories. netJACK enables communication solutions for drives, HMI and identification systems and can host additional functions such as soft-PLC, visualization or customer-specific applications. A 10-year availability framework is provided via the netX platform.

Highlights

• Universal Real-Time Ethernet interface (Master or Slave) in closed IP40 housing
• Host connection via PCI Express (One-Lane-Port)
• Single hardware covering multiple Real-Time Ethernet protocols
• Tool-free plug-in installation on carrier board
• No additional mounting components required

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Technical data

• Product / Part number: 1625.100
• Model: NJ 100EN-RE
• Manufacturer: Hilscher
• Communication controller: netX 100
• Integrated Memory - RAM: 8 MB SDRAM
• Integrated Memory - FLASH: 4 MB serial Flash EPROM
• Supply voltage: +3.3 V ±5% DC
• Typical/max current: 750 mA
• Typical power consumption: 2.5 W
• Host interface: PCI-Express One-Lane-Port
• Host connector: 40 pin connector (SAMTEC FSI-120-03-G-D-AB)
• Host transmission rate: 1.5 GHz
• Ethernet interface: 100BASE-TX (isolated) or 10BASE-T, 2x RJ45
• Diagnostic interface: USB (signal at host interface when integrated)
• LEDs: SYS (RUN/RDY), COM0/COM1 (comm. status), TX/RX0-1 (activity), LINK0-1 (link)
• Operating temperature: -20 °C … +65 °C
• Storage temperature: -40 °C … +85 °C
• Altitude: 0 m … 2000 m
• Dimensions: L 62 mm (with RJ45) / 60 mm (without RJ45) x W 53.4 mm (front) / 50.4 mm (body) x H 25.2 mm (front) / 19.2 mm (body)
• Weight: approx. 60 g
• Housing / Protection class: Closed module / IP40
• Mounting/pulling cycles: max. 10
• Configuration software: SYCON.net
• Certifications: RoHS, REACH, CE, UKCA, UL (cURus, E334100)

Mounting & configuration
Mounting is performed via milled footprint holes in the carrier board and retaining brackets on the module; no additional mounting accessories are required. The module supports quick plug-in installation by the manufacturer or end customer. Configuration and protocol selection are performed with SYCON.net; diagnostic access is available via USB or host-signalled interfaces where implemented.

Compliance & tests

• EMC: Emission EN 55011 / Immunity EN 61131-2
• UL: cURus, file E334100
• Environmental and mechanical tests: Shock EN60068-2-27 Ea, Vibration EN60068-2-6 Fc
