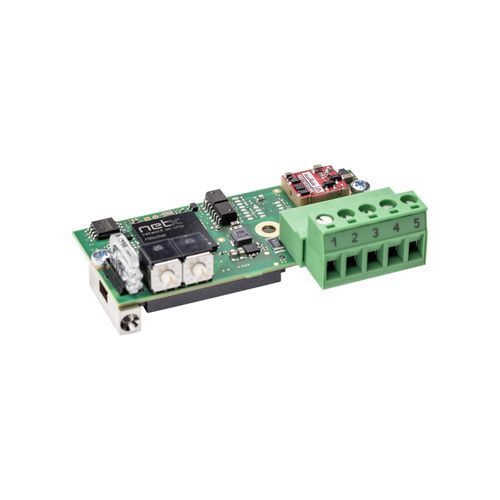

USB communication module COMX 52CA-DNS

serialDeviceNetEthernet

Overview
The comX COMX 52CA-DNS communication module provides a compact network interface for automation equipment (drives, robot controllers, PLCs). Communication is handled autonomously by the module independent of the host CPU. Process data is exchanged via a Dual‑Port Memory accessed over an 8/16‑bit parallel bus or a fast 50 MHz SPI interface. The module supports DeviceNet as Slave and can be reconfigured for other protocols by loading firmware and, if required for masters, a software license. Two Ethernet ports support line topologies where applicable. The embedded Hilscher netX controller ensures long‑term availability.

Highlights

• Universal DeviceNet Slave interface with onboard network connector
• Flexible network connector positioning
• Host connection via Dual‑Port Memory (parallel) or SPI (serial, up to 50 MHz)
• Function‑compatible substitute for comX 10CA-DNS

Supported protocols

• DeviceNet Slave

Technical specifications

• Product / Model: COMX 52CA-DNS
• Part number: 1581.520 (order variant 1581.520/DNS)
• Brief description: Communication Module — DeviceNet Slave
• Communication controller: netX (netX 52)
• Integrated memory: 4 MB serial Flash
• Supply voltage: +3.3 V DC ±5 %
• Typical/maximum current: 400 mA / 440 mA (at 3.3 V)
• Typical power consumption: approx. 1.3 W (at 3.3 V)
• Power connector: via system bus connector X1
• System interface: Parallel or serial Dual‑Port Memory interface
• Connector (system): 50‑pin SMT connector, socket
• Pin pitch: 1.27 mm
• Dual‑Port Memory size: 16 KByte (lower 8 KByte used by firmware)
• Data width: 8/16 bit
• Serial Dual‑Port Memory interface: SPI Slave, mode 3
• SPI baud rate: max. 50 MHz
• Communication standard: DeviceNet Slave (ISO‑11898, according to DeviceNet specification, potential‑free)
• Network connector: COMBICON connector, 5‑pin
• Diagnostic interface: UART or USB (signal at host interface; available only if integrated in host system)
• LED indicators: SYS (System Status) green: RUN, yellow: RDY; MNS (Module Network Status) green: MS, red: NS
• Operating elements: 2 rotary switches for network address
• Ambient temperature (operation): -20 °C … +70 °C (air flow during measurement: 0.5 m/s)
• Ambient temperature (storage): -40 °C … +85 °C
• Humidity range: 10 % … 95 % relative humidity (non‑condensing)
• Altitude: 0 … 2000 m
• Dimensions (L x W x H): 70 mm x 30 mm x 21.5 mm
• Weight: approx. 35 g … 40 g
• Mounting: using screwable metal bolts, according to comX Design Guide
• Configuration software: SYCON.net
• Conformity: RoHS: yes
• CE mark: yes
• UKCA mark: yes
• Emission: EN 61000-6-4 / BS EN 61000-6-4
• Immunity: EN 61000-6-2 / BS EN 61000-6-2
• ESD (EN 61000-4-2): ± 6 kV, Criterion A (contact discharge)
• Burst (EN 61000-4-4): ± 2.2 kV, Criterion A (communication lines, shielded)
• Surge (EN 61000-4-5): 1 kV, Criterion A (communication lines, shielded)
