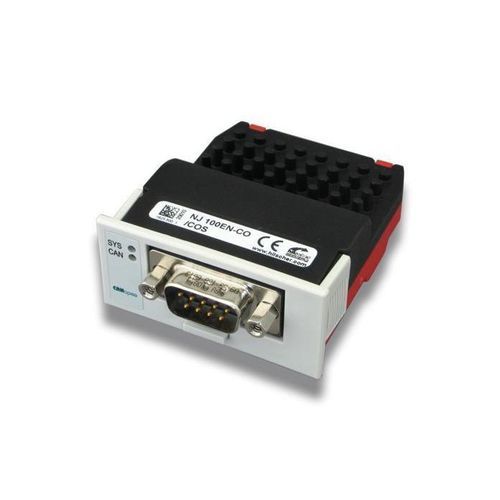

USB interface module NJ 100EN-CO

D-SubbusCANopen

Overview The NJ 100EN-CO is an exchangeable PCI Express module for embedded systems, offering a CANopen interface based on the netX 100 network controller. Versions with dual-port memory or a serial SPI flash are available. The closed IP40 compact housing is designed for tool-free mounting into the host system; connector and mounting rails are implemented as contact areas on the carrier board to avoid additional mounting costs. The module can be installed prior to shipment or later by the end customer. Typical applications include drive systems, HMI solutions and identification systems. Additional functions such as soft-PLC, visualization or customer-specific applications can be implemented. A 10-year delivery guarantee is provided thanks to the Hilscher netX platform.

Highlights

• Universal CANopen interface (Master or Slave) in closed IP40 housing
• Host connection via PCI Express (one-lane)
• Tool-free plug-in installation
• Master or Slave operation on same hardware
• No additional components required for mounting or carrier board connection

Supported protocols

• CANopen Master
• CANopen Slave

Technical Data (table) NJ 100EN-CO | Parameter | Value
Product - Part number: 1625.500
Product - Brief description: Exchangeable Module PCI Express - CANopen
Communication controller - netX: netX 100
Integrated Memory - RAM: 8 MB SDRAM
Integrated Memory - FLASH: 4 MB serial Flash EPROM
Power supply and current - Supply voltage: +3.3 V ± 5 % DC
Power supply and current - Typical/maximum current: 590 mA
Power supply and current - Typical power consumption: 1.95 W (at 590 mA)
System interface - Bus type: PCI-Express, One-Lane-Port
System interface - Connector type: 40 pin connector (SAMTEC FSI-120-03-G-D-AB)
System interface - Pin distance/pin width: 0.45 mm / 0.55 mm
System interface - Transmission rate: 1.5 GHz
Communication interface - Communication standard (protocol): CANopen
Communication interface - Interface type: ISO 11898, potential free
Communication interface - Connector: D-Sub plug, 9-pin
Diagnostic interface - Type: USB
Diagnostic interface - Connector: Signal at host interface. Available only if integrated in host system
Display - Display: SYS System Status, green: RUN, yellow: RDY
Display - CAN Communication status: (indicator present)
Environment - Ambient temperature range for operation: -20 °C … +65 °C
Environment - Ambient temperature range for storage: -40 °C … +85 °C
Environment - Altitude: 0 m … 2000 m
Device - Dimensions (L x W x H): Length 62 mm (with RJ45 connector), 60 mm (without RJ45 connector), width 53.4 mm (at front panel), 50.4 mm (at body), height 25.2 mm (at front panel), 19.2 mm (at body)
Device - Weight: approx. 68 g
Device - Housing: Closed module
Device - Protection class: IP40
Device - Mounting/Installation: Via milled footprint holes in the carrier board and retaining brackets. No mounting accessories required.
Device - Mounting/pulling cycles: max. 10
Device - Configuration - Configuration software: SYCON.net
Conformity - RoHS: yes
Conformity - Reach: yes
UL certification - UL type: cURus
UL certification - UL file: E334100
Conformance with EMC directives - CE sign: yes
Conformance with EMC directives - UKCA sign: yes
Conformance with EMC directives - Emission: EN 55011 / BS EN 55011
Conformance with EMC directives - Immunity: EN 61131-2 / BS EN 61131-2
Tests - Shock: EN60068-2-27 Ea
Tests - Vibration: EN60068-2-6 Fc

Specifications

• Model / Name: NJ 100EN-CO
• Part number: 1625.500
• Communication controller: netX 100
• Memory: 8 MB SDRAM; 4 MB serial Flash EPROM
• Supply voltage: +3.3 V ±5 %
• Typical current: 590 mA (typ.)
• Typical power consumption: 1.95 W (at 590 mA)
• System bus: PCI-Express, One-Lane-Port; 40 pin SAMTEC connector
• Transmission rate: 1.5 GHz
• Protocol: CANopen (Master and Slave)
• CAN interface: ISO 11898, D-Sub 9-pin connector
• Diagnostic: USB (signal at host interface if integrated)
• Operating temperature: -20 °C … +65 °C; Storage: -40 °C … +85 °C
• Dimensions: Length 62/60 mm × Width 53.4/50.4 mm × Height 25.2/19.2 mm
• Weight: approx. 68 g
• Housing / Protection: Closed module / IP40
• Mounting: milled footprint holes and retaining brackets, no accessories required; max. 10 mounting cycles
• Configuration software: SYCON.net
• Approvals: RoHS, REACH, CE, UKCA, UL (cURus, file E334100)
• EMC: Emission EN 55011; Immunity EN 61131-2
