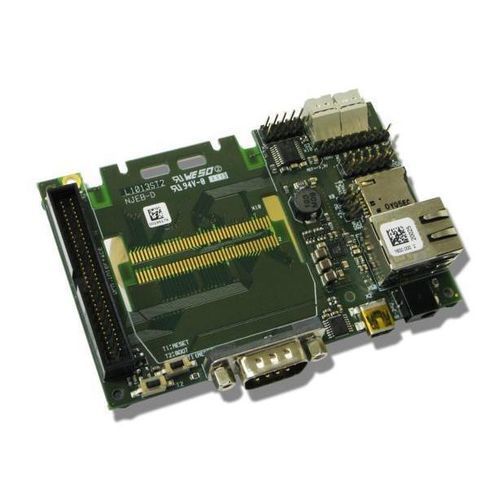

Evaluation board NJEB-D

Description
The netJACK evaluation board NJEB-D provides a compact, closed IP40 exchangeable module platform for evaluating netJACK modules with dual‑port memory or SPI host interfaces. The board targets embedded applications with high‑performance CPUs and allows fast, tool‑free installation via contact areas and mounting rails on the host system. It supports implementation of communication solutions such as drives, HMI and identification systems, and can host additional customer applications like soft‑PLC or visualization. Hilscher offers design and production services for customer‑specific requirements and a 10‑year delivery guarantee based on the netX network controller. Lifecycle: End of life.

Highlights

• Simple evaluation of netJACK via dual‑port memory (DPM) with host connection
• Host connection via DPM or serial SPI depending on netJACK variant
• Single evaluation platform compatible with multiple protocols
• Tool‑free plug‑in installation
• No additional components required for mounting or carrier‑board connection

Order information (table)
Product name | Part number | Brief description
NJEB-D | 1600.000 | netJACK Evaluation Board dual-port memory

Supported protocols

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• DeviceNet Master
• CANopen Master
• PROFIBUS DP Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CANopen Slave

Characteristics / technical specifications

• Model: NJEB-D
• Product type: netJACK Evaluation Board (for netJACK modules with dual‑port memory or SPI)
• Interfaces: Dual‑port memory (DPM) host connection and serial SPI host connection (depending on netJACK variant)
• Form factor: Closed IP40 exchangeable module
• Mounting: Tool‑free plug‑in installation; connector and mounting rails use contact areas / cut‑outs on host
• One evaluation platform compatible with multiple netJACK protocols
• Part number (order reference): 1600.000
• Designed uses: Evaluation of netJACK modules; integration in embedded applications (drives, HMI, identification systems, etc.)
• Additional functions supported: Soft‑PLC, visualization, customer applications (dependent on customer implementation)
• Manufacturer / Brand: Hilscher
• Delivery guarantee: 10‑year delivery guarantee (netX‑based)
• Lifecycle state shown on page: End of life
