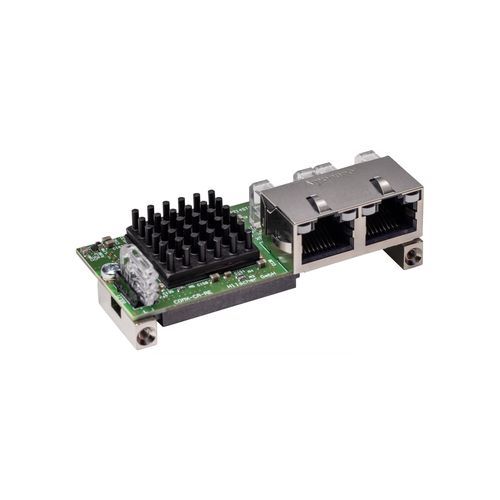

USB communication module COMX 100CA-RE

Modbus TCPEtherCATPowerlink

Overview
The COMX 100CA-RE is a Real-Time Ethernet communication module for integration into drives, robot controllers, PLCs and other automation devices. It executes communication tasks independently of the host processor and exchanges process data via a Dual‑Port‑Memory accessed through an 8/16-bit bus interface or a 50 MHz SPI interface. The module supports major Real-Time Ethernet protocols as Master or Slave and includes two Ethernet ports for line topologies. Firmware and master licenses are changeable by loading the appropriate firmware packages. The module uses the netX network controller and benefits from a 10-year delivery guarantee.

Highlights

• Universal Real‑Time Ethernet interface (Master or Slave) with onboard network connector
• Single hardware platform for multiple Real‑Time Ethernet protocols
• Preloaded firmware for immediate use
• Firmware update via integrated web server
• Host connection via Dual‑Port‑Memory (parallel bus or SPI)

Supported protocols

• Sercos Master
• PROFINET IO‑Controller
• EtherNet/IP Scanner
• EtherCAT Master
• VARAN Client
• Sercos Slave
• PROFINET IO‑Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Specifications

• Part number: 1531.100
• Type: Communication module Real‑Time Ethernet
• Communication controller: netX (netX 100)
• Memory: 8 MB SDRAM; 4 MB serial FLASH
• Process data exchange: Dual‑Port‑Memory via 8/16‑bit bus or 50 MHz SPI
• Supply voltage: +3.3 V DC ±5 %
• Typical/Max current: ≈ 700 mA / 750 mA (at 3.3 V)
• Typical power consumption: ≈ 2.5 W
• Power connector: via system bus connector X1
• System interface: Parallel Dual‑Port‑Memory interface
• System connector: 50‑pin SMT socket (pin pitch 1.27 mm)
• Dual‑Port memory size: 16 KByte
• Data width: 8/16 bit
• Communication standard: Ethernet (10BASE‑T / 100BASE‑TX, potential‑free)
• Ethernet features: auto‑negotiation, auto crossover
• Ethernet connector: 2 × RJ45 (two Ethernet ports for line topology)
• Diagnostic interface: UART or USB (signal available at host interface if integrated)
• LED indicators: SYS, COM0/COM1, TX/RX0, TX/RX1, LINK0, LINK1
• Operating temperature: 0 °C … +65 °C (measurement with 0.5 m/s airflow)
• Storage temperature: -40 °C … +85 °C
• Humidity: 10 % … 95 % RH (non‑condensing)
• Dimensions (L×W×H): 70 × 30 × 21.5 mm
• Weight: approx. 35–40 g
• Mounting: screwable metal bolts (see comX Design Guide)
• Configuration software: SYCON.net
• RoHS: yes
• EMC/CE/UKCA: compliant
• EMC standards: EN 61000‑6‑4, EN 61000‑6‑2; ESD ±6 kV (EN 61000‑4‑2); EFT ±2 kV (EN 61000‑4‑4); Surge 1 kV (EN 61000‑4‑5)
