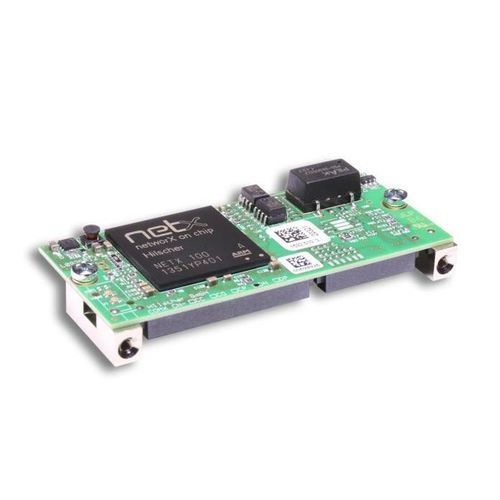

DeviceNet communication module COMX 100CN-DN

PLCprogrammablemicroprocessor-controlled

Overview The COMX 100CN-DN module provides a DeviceNet interface for integration into automation devices. Based on the Hilscher netX 100 controller, it executes network communication independently of the host CPU and supports firmware changes to select master or slave functionality and other compatible protocols.

Highlights

• DeviceNet interface (Master or Slave) with network connection to the mainboard
• Flexible positioning of the network connector
• Same hardware supports master or slave operation
• Preloaded firmware for immediate use
• Host connection via Dual-Port Memory (DPM) or fast 50 MHz SPI

Detailed description The module exchanges process data via a Dual-Port Memory accessible through an 8/16-bit parallel bus interface or a high-speed 50 MHz SPI interface. The netX 100 controller enables protocol changes by loading appropriate firmware; master operation may require a software license. The module is designed to be embedded in drives, robot controllers, PLCs and other host systems; network tasks run autonomously within the module regardless of the host processor.

Supported protocols

• DeviceNet Master
• DeviceNet Slave

Technical data

• Model: COMX 100CN-DN
• Part number: 1532.510
• Product description: Communication module DeviceNet
• Controller: netX 100
• Dual-Port Memory: 16 KByte; data width 8/16 bit
• RAM: 8 MB SDRAM; Flash: 4 MB serial Flash
• System interface: Parallel DPM (50-pin SMT, 1.27 mm pitch) or 50 MHz SPI
• DeviceNet interface: ISO-11898, 30-pin SMT connector (1.27 mm), compatible with SAMTEC TFM-115-02-S-D–A
• Diagnostics: UART or USB signal at host interface (if integrated)
• Power: +3.3 V DC ±5 %, typical current approx. 440 mA, max 470 mA, typical power 1.5–1.6 W
• Indicators: LEDs at X2 for system and module network status
• Operating temperature: -20 °C to +65 °C; storage: -40 °C to +85 °C; humidity 10–95 % RH non-condensing
• Dimensions: 70 x 30 x 21.5 mm; Weight: approx. 35–40 g
• Mounting: screwable metal bolts (comX Design Guide)
• Configuration software: SYCON.net
• Conformity: RoHS, CE, UKCA; EMC emission & immunity standards as listed

Specifications

• Interfaces: Parallel DPM or 50 MHz SPI to host; DeviceNet (ISO-11898)
• Memory: 8 MB SDRAM, 4 MB serial Flash
• Power consumption: ~1.5–1.6 W at +3.3 V DC
• Environmental: -20 °C … +65 °C operating
• Dimensions & weight: 70 x 30 x 21.5 mm; ~35–40 g
