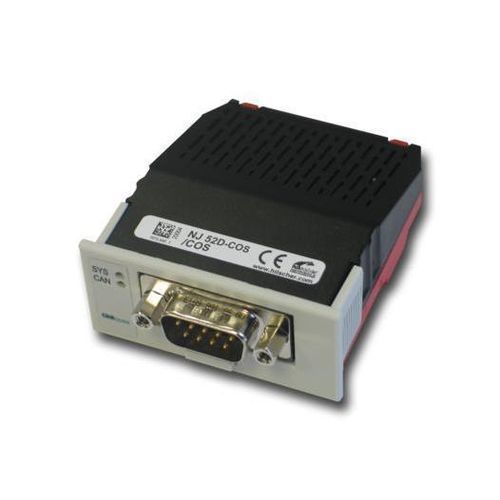

USB interface module NJ 52D-COS

D-SubCANopenPCI

Description
The PCI Express exchangeable module netJACK NJ 52D-COS provides a CANopen Slave interface in a closed IP40 housing. Designed for embedded and industrial applications, it supports host connection via parallel dual-port memory or high-speed serial SPI and can be mounted without tools using milled footprint holes and retaining brackets. Connector and mounting rails are implemented as contact areas/cut-outs on the carrier board to enable plug-in installation before shipment or by the end customer.

Applications and functions

• Interface solution for drives, HMI and identification systems
• Support for additional functions such as soft-PLC, visualization and customer applications
• Customer-specific design and production services available
• 10-year delivery assurance based on the Hilscher netX network controller

Highlights

• Universal CANopen Slave interface in a closed IP40 housing
• Host connection via dual-port memory or SPI
• Simple plug-in installation without tools
• No additional components required for mounting and connecting to the carrier board
• Function-compatible substitute for NJ 10D-COS

Supported protocols

• CANopen Slave

Technical specifications

• Part number: 1672.540
• Brief description: Exchangeable module SPI - CANopen Slave
• Communication controller: netX 52
• Integrated memory: RAM 8 MB SDRAM; FLASH 4 MB serial Flash EPROM
• Supply voltage: +3.3 V ± 5 % DC
• Typical/maximum current: 356 mA / 410 mA
• Typical power consumption: 1.35 W
• System interface: Parallel or serial Dual-Port Memory
• Connector type: 60 pin connector (SAMTEC FSI-130-03-G-D-AB)
• Pin distance / pin width: 0.45 mm / 0.55 mm
• Dual-port-memory size: 64 KByte (16 address lines), where 8 KByte used by firmware (13 address lines, lowest 8 KByte)
• Width for the data access to the Dual-Port Memory (DPM): 8/16 bit
• Serial dual-port memory interface: SPI Slave, mode 3
• SPI Baud rate: Max. 50 MHz
• Communication interface / protocol: CANopen Slave
• CAN interface type: ISO 11898, potential free
• CAN connector: D-Sub plug, 9-pin (when implemented on host)
• Diagnostic interface: USB or UART (signal at host interface; available only if integrated in host system)
• Display indicators: SYS System Status, green: RUN, yellow: RDY; CAN communication status indicator
• Ambient temperature range for operation: -25 °C … +70 °C
• Ambient temperature range for storage: -40 °C … +85 °C
• Altitude: 0 m … 2000 m
• Dimensions (L x W x H): Length: 68.2 mm / 60 mm (with / without DSUB socket); Width: 53.4 mm (at front panel) / 50.4 mm (body); Height: 25.2 mm (at front panel) / 19.2 mm (body)
• Weight: approx. 56 g
• Housing: Closed module
• Protection class: IP40
• Mounting/Installation: Via milled footprint holes in the carrier board and retaining brackets; no mounting accessories required
• Mounting/pulling cycles: max. 10
• Configuration software: SYCON.net
• Conformity: RoHS - yes; REACH - yes
• UL certification: UL type cURus; UL file: E334100
• Conformance with EMC directives: CE - yes; UKCA - yes
• Emission: EN 55011 / BS EN 55011
• Immunity: EN 61131-2 / BS EN 61131-2
• Tests: Shock EN60068-2-27 Ea; Vibration EN60068-2-6 Fc
