USB interface module NJ 100DN-RE

busSERCOSModbus

Overview

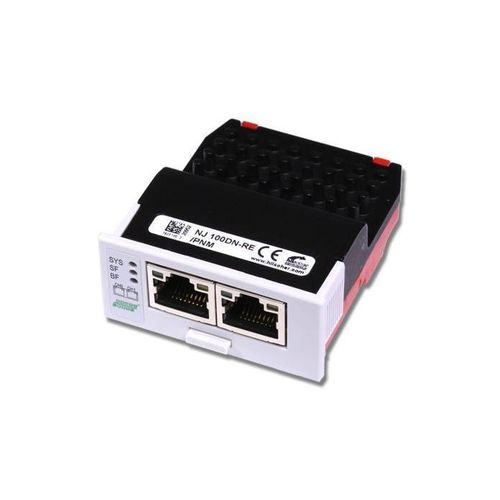

The NJ 100DN-RE is an exchangeable module with parallel dual-port memory for Real-Time Ethernet. It provides a universal Real-Time Ethernet interface (Master or Slave) in a closed IP40 housing and is designed for tool-free mounting in the delivery chain or by the end customer.

Highlights

• Universal Real-Time Ethernet interface (Master or Slave) in closed IP40 housing
• Tool-free plug-in installation via milled footprint and retaining brackets
• Single hardware platform supporting multiple Real-Time Ethernet protocols
• No additional mounting accessories required
• Host connection via parallel dual-port memory for deterministic data exchange

Product description
The netJACK exchangeable module family targets embedded industrial applications. The NJ 100DN-RE integrates a netX (netX 100) communication controller and provides a parallel dual-port memory interface for fast host access. The compact IP40 closed module mounts on carrier boards using footprint cut-outs and retaining brackets; connectors are realized as contact areas or cut-outs on the host, eliminating extra mounting parts. Typical applications include drives, HMI, identification systems and other automation devices. The module can host additional functions (soft‑PLC or customer applications). A 10-year delivery guarantee is provided by the Hilscher netX network controller.

Supported protocols

• Sercos Master / Sercos Slave
• PROFINET IO-Controller / PROFINET IO-Device
• EtherNet/IP Scanner / EtherNet/IP Adapter
• EtherCAT Master / EtherCAT Slave
• CC-Link IE Field Basic Slave
• VARAN Client
• POWERLINK Controlled Node
• Open Modbus/TCP Server / Open Modbus/TCP Client

Technical specifications

• Part number: 1623.100
• Brief description: Exchangeable module, dual-port memory
• Communication controller: netX (netX 100)
• Integrated memory: 8 MB SDRAM; 4 MB serial Flash
• Supply voltage: +3.3 V ±5% DC
• Current (typ./max.): 556 mA / 640 mA
• Typical power consumption: 1.83 W
• System interface - Bus type: Parallel dual-port memory, 8/16 bit
• Connector type: 80-pin connector (SAMTEC FSI-140-03-G-D-AB)
• Dual-port memory size: 64 KByte (16 address lines); 16 KByte reserved for firmware
• Communication interface: Ethernet (100BASE-TX isolated or 10BASE-T)
• Ethernet connector: 2x RJ45
• Diagnostic interface: USB or UART (signal at host interface; available if integrated)
• Displays / LEDs: SYS, COM0, COM1, TX/RX0, TX/RX1, LINK0, LINK1
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Altitude: 0–2000 m
• Dimensions (L × W × H): 62 mm / 60 mm (with/without RJ45) × 53.4 mm / 50.4 mm × 25.2 mm / 19.2 mm
• Weight: < 80 g
• Housing: Closed module, protection class IP40
• Mounting / Installation: Via milled footprint holes and retaining brackets; no additional mounting accessories required; max. 10 mounting cycles
• Configuration software: SYCON.net
• Conformity: RoHS, REACH; Certifications: cURus (UL file E334100), CE, UKCA; EMC: EN 55011 (emission), EN 61131-2 (immunity)
• Tests: Shock EN60068-2-27; Vibration EN60068-2-6
