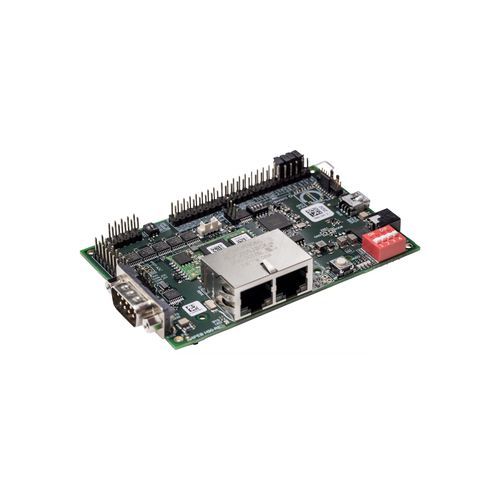

Evaluation board NRPEB H90-RE

Overview
Ultracompact slave interface for secure field and cloud connectivity. netRAPID 90 integrates a netX90 chip carrier (QFP-style SMD) with a flexible multiprotocol processor and an on-board Cortex-M4 application processor. Available as a preloaded communication module or as a programmable platform for customer-specific applications and pin assignments. Automated Hilscher production enables delivery preloaded with customer- and application-specific firmware.

Highlights

• Easy evaluation of netRAPID 90 technology
• Development platform for customer-specific netRAPID 90 applications
• Includes a limited slave firmware version for evaluation
• Includes evaluation tools and documentation
• Optional accessory: netRAPID 90 prototyping box

Supported protocols

• CC-Link IE Field Slave
• OPC UA Server
• MQTT Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CANopen Slave

Order information
Product name | Product number | Brief description
NRPEB H90-RE | 7600.320 | netRAPID H90 Evaluation Board - Real-Time Ethernet & Fieldbus

Technical specifications

• Product name: NRPEB H90-RE (netRAPID H90 Evaluation Board)
• Platform: netRAPID based on netX90 chip carrier, QFP-style SMD mounting
• Application processor: Cortex-M4 on board
• Multiprotocol processor supporting common Industrial Ethernet and fieldbus protocols
• Memory: available in different sizes (variants)
• Delivery options: ready-to-use module with preloaded protocol firmware or flexible programming platform for custom applications and pin assignments
• Security: integrated Crypto-Core supporting TLS, secure boot and other security functions
• Includes: limited slave firmware version, evaluation tools and documentation
• Optional accessory: netRAPID 90 prototyping box
• Use case: evaluation and development of real-time Ethernet & fieldbus applications and secure field-to-cloud connectivity
