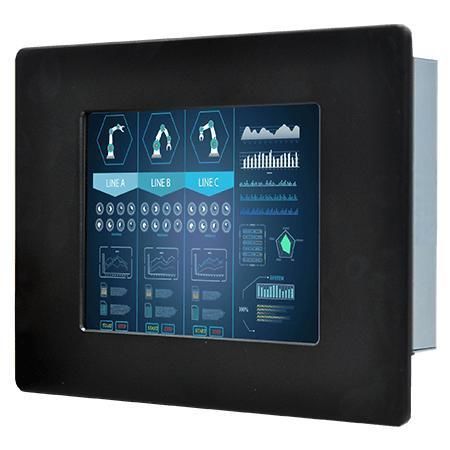

LCD monitor R05T100-IPD1HB

resistive touch screenindustrialoutdoor

Overview
Winmate R05T100-IPD1HB is a 5.7-inch front IP65 high-brightness display designed for industrial and commercial use where front waterproofing and sunlight readability are required. The compact bezel and front O‑ring seal enable reliable panel integration in cabinets, kiosks and racks.

Key features

• 5.7 inches, 640 x 480 resolution
• VGA (default), HDMI/DVI optional
• Panel-mount (front) with IP65 front protection
• High-brightness panel (900 nits) and optical bonding option

Design and typical applications
The front-sealed bezel with rubber O‑ring prevents water and dust ingress when correctly integrated into the host enclosure. Suitable for factory automation, outdoor kiosks, pool and SPA kiosks, parking and fuel-station terminals.

Touch and surface options
Flexible surface choices: resistive touch screen (optional) or protection glass without touch (optional) to match operator and application requirements.

Interfaces and integration
Standard and optional interfaces simplify integration with embedded boards and industrial systems.

• Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• USB: 1 x USB for touch (optional)
• Audio: audio line-in (3.5 mm) and 2 x speakers (optional)

High brightness and readability
Optical bonding with anti-reflective glass (optical-grade adhesive) reduces reflections, increases contrast and improves sunlight readability for reliable 24/7 operation.

Installation and mechanical
Panel-mount design with metal enclosure, fanless cooling and compact dimensions for cabinet or rack installation. Cut-out and VESA mounting options available depending on variant.

Certifications

• CE
• FCC

Accessories (included / optional)

• Typical included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: remote controller, other variant-dependent accessories

Technical specifications

• Display - Size: 5.7 inches
• Display - Resolution: 640 x 480
• Display - Panel Brightness: 900 nits
• Display - Contrast Ratio: 300:1
• Display - View Angles: 70, 70, 40, 60
• Display - Display Color: 262K Colors
• Display - Active Area: 115.2 x 86.4 mm
• Touch / Glass - Resistive Touch Screen (Optional) or Protection Glass w/o Touch (Optional)
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports - USB: 1 x USB for touch screen (optional)
• IO Ports - Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• IO Ports - Audio: Audio line in (3.5mm) (optional), 2 x speaker (optional)
• Mechanical - Dimension: 198 x 162 x 41 mm
• Mechanical - Cut out: 170 x 138 mm
• Mechanical - Mounting: Panel mount (VESA Mount / Panel Mount)
• Mechanical - Enclosure: Metal
• Mechanical - Cooling System: Fanless design
• Accessory - Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Accessory - Optional: Remote controller (optional, varies by product)
• Power - Power Rating: 12V DC input
• Optional Function: High brightness panel for sunlight readability (optional)
• Control - Buttons: 5 keys: -, +, Power, Esc, Enter
