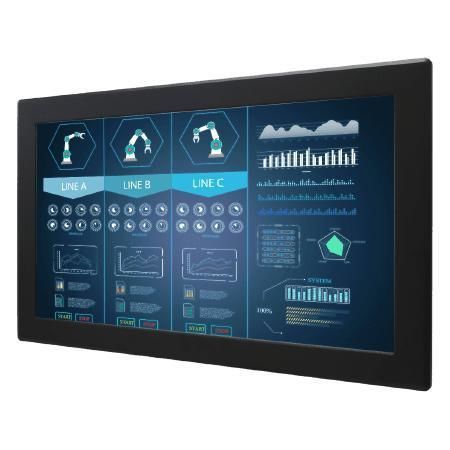

LCD monitor W24L100-IPA2

resistive touch screenwith touchscreenindustrial

Overview
24-inch front IP65 industrial display designed for wet and dusty environments. The display provides front-side IP65 protection while keeping a compact bezel, suitable for factory automation, outdoor kiosks, pools and spa kiosks, and similar installations.

Key Features

• 24 inches, 1920 x 1080
• VGA and HDMI signal input
• Panel mount (optional) and VESA mount
• Front IP65 waterproof and dustproof
• Resistive touch standard; protection glass or SAW touch optional

Waterproof Front IP65 Design
The front bezel is rated IP65 to protect against water and dust ingress from the front. The sealed design with a rear rubber O-ring ensures reliable protection when mounted into a cabinet or kiosk.

Intuitive Operations with the Touchscreen
Flexible surface options include resistive touch as standard, protection glass without touch, and SAW touch on request. This allows specification to the user environment and operational needs.

HDMI, VGA Signal Interfaces
Standard VGA and optional HDMI or DVI interfaces enable easy integration with embedded boards, PLCs and industrial systems commonly used in automation and kiosk applications.

Easy Installation
Compact mechanical design and sealed front bezel simplify installation into control panels, cabinets or kiosks. Standard VESA mounting and optional panel mount support multiple integration scenarios.

Suitable for Outdoor Kiosk Applications
When properly embedded in an enclosure, the front IP65 rating helps the display withstand water, humidity, temperature variations and airborne particles, making it suitable for parking, fuel stations, pools and other outdoor kiosks.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 606 x 376 x 65 mm
• Cut out: 560 x 330 mm
• Weight: 8.6 kg
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
