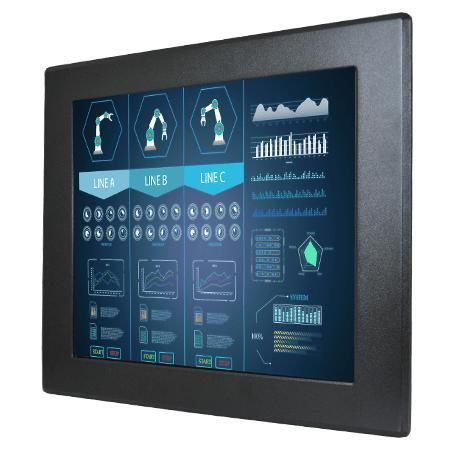

Resistive touch screen monitor S17L500-IPA1HB

with touchscreenindustrialoutdoor

Overview
17-inch front IP65 high brightness industrial monitor designed for wet and dusty industrial and commercial environments. The front bezel is rated IP65 to provide water and dust protection while keeping a compact narrow-bezel design suitable for panel or VESA mounting.

Key features

• 17-inch, 1280 x 1024 resolution
• VGA (default) and HDMI (optional) inputs; DVI optional
• Panel mount and VESA mount options
• High brightness: 1000 nits
• Front bezel IP65 waterproof and dustproof

Waterproof front IP65 design
Front-side IP65 protection prevents ingress of water and dust when the unit is correctly sealed into a cabinet or kiosk. A rear rubber O-ring on the front bezel ensures reliable sealing to the customer fixture.

Touchscreen and surface options
Available with resistive touchscreen (optional) or protection glass without touch function for installations that do not require touch input.

Signal interfaces and installation
Provides VGA (standard), HDMI and DVI (optional) video interfaces and 1 x USB for touch. Designed for easy integration with embedded boards and systems and for straightforward cabinet or rack installation.

Suitable for outdoor kiosk and industrial use
When embedded and sealed properly, the front IP65 rating resists water, humidity, temperature variations and sunlight, making it suitable for parking, gas stations, swimming pool/SPA kiosks and other outdoor kiosks.

High brightness and optical bonding
1000-nit panel with anti-reflective protection glass optically bonded to reduce reflections and improve readability in direct sunlight and high-humidity environments.

Certifications

• CE
• FCC

Technical specifications

• Model: S17L500-IPA1HB
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 85, 85, 80, 80
• Display colors: 16.2M Colors
• Active area: 337.920 x 270.336 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 440 x 360 x 60 mm
• Cut out: 412 x 332 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional)
• Power input: 12V DC (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
