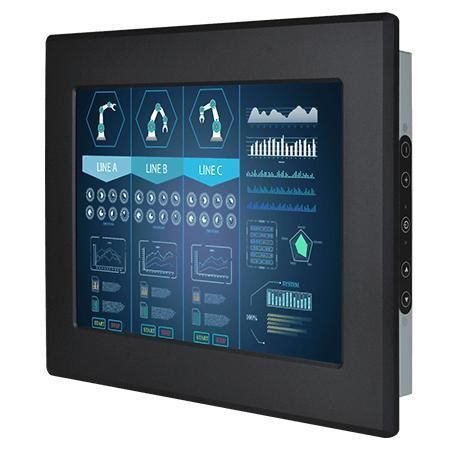

Resistive touch screen monitor R10L100-IPP3

outdoorfor industrial machinesfor digital signage

Overview
The R10L100-IPP3 is a 10.4" front IP65 display designed for wet and dusty industrial and outdoor kiosk applications. Its front-side IP65 rating provides water and dust protection while maintaining a compact narrow-bezel form factor suitable for panel or enclosure integration.

Touchscreen and surface options
Available with a resistive touchscreen (optional) or protection glass without touch (optional) to match operator requirements in industrial environments.

Signal interfaces and integration
Designed for easy integration with embedded boards and systems. Standard video input is VGA; HDMI and DVI are available as options. A USB port is provided for touch interface. Audio line-in and speakers are optional.

Installation and mechanical design
The front bezel uses a rear rubber O-ring to seal against the customer's fixture and prevent ingress. Supports panel mount and VESA mount. Metal housing with aluminum bezel and fanless design facilitate cabinet or rack integration.

Environmental suitability and applications
When properly embedded, the front IP65 rating makes the display suitable for outdoor kiosks and industrial terminals exposed to water, humidity, temperature variations, sunlight and airborne particles (examples: parking terminals, fuel stations, pool and spa kiosks, factory automation).

Key features

• 10.4" display; page lists 1024 x 768 (spec section also shows 640 x 480)
• VGA (default); HDMI and DVI optional
• Panel mount and VESA mount options
• Front IP65 waterproof and dustproof
• Resistive touch or protection glass options

Certifications

• CE
• FCC

Technical specifications

• Model: R10L100-IPP3
• Size: 10.4 inches
• Resolution: 640 x 480 (spec); 1024 x 768 noted elsewhere
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Panel Brightness: 450 nits
• Contrast Ratio: 700:1
• View Angles: 80, 80, 80, 60
• Display Color: 16.2M Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IO Ports: 1 x USB (for touch); Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 284 x 234 x 43 mm
• Cut out: 264 x 216 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories (included): VGA cable; HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
